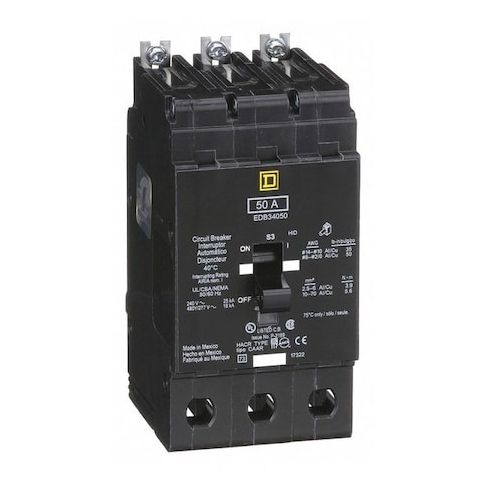

Miniature Circuit Breaker, E FRAME Series, 50A, 3 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB34050
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1197427
Miniature Circuit Breaker, E FRAME Series, 50A, 3 Pole, 277/480V AC, 25kA at 120V AC
The Square D E FRAME Series Miniature Circuit Breaker is a reliable and efficient solution for protecting your electrical panel. With a 50A rating and 277/480V AC voltage, it's designed for use in commercial and industrial applications. This three-pole circuit breaker features a toggle actuator and bolt-on mounting style, making it easy to install and integrate with Square D NF panelboards. Its high interrupting capacity and compact design make it ideal for use in a variety of settings, including data centers, hospitals, and office buildings, providing peace of mind and protecting your equipment from power surges and overloads.
Top product features:
- 50A rating for high current applications
- Three-pole design for three-phase power distribution
- 25kA short-circuit rating at 120V AC for enhanced safety and reliability
Top product applications:
- Residential electrical panels
- Commercial electrical panels
- Industrial electrical panels
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Three, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.70
- Package Height: 3.70
- Package Weight: 3.25
Product info last updated on February 4, 2026 8:21pm UTC
Category: Circuit Protection
