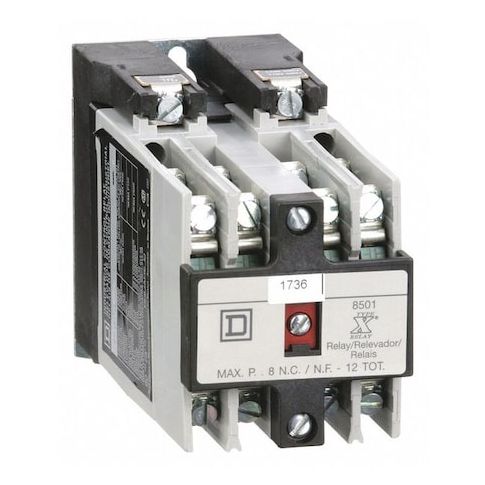

NEMA Control Relay, 8NO, 120VAC, 10A MPN:8501XO80V02
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1160056
NEMA Control Relay, 8NO, 120VAC, 10A
The Square D NEMA Control Relay is a reliable and versatile solution for a wide range of applications. With a 10A current rating and 8NO contact form, this relay is ideal for use in control circuits, motor starters, and other industrial applications. Its compact design and surface-mounting style make it easy to integrate into existing systems. The relay's high operating temperature and frequency compatibility ensure reliable performance in harsh environments. Suitable for use in control panels, machine automation, and other applications, this relay offers a reliable and efficient solution for controlling electrical circuits.
Top product features:
- 8NO contact form provides 8 normally open contacts
- 10A current rating allows for high power applications
- Coil voltage of 110/120V AC enables operation from standard household power
Top product applications:
- Control Panel Equipment
- Control System Automation
- Machine Control Systems
NEMA Control Relay, Current Rating 10 A, Contact Form 8NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 110/120V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 5.16 in, Body Height 3.5 in, Body Width 2.23 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 4.40
- Package Height: 3.30
- Package Weight: 2.50
Product info last updated on January 15, 2026 3:51am UTC
Category: Industrial Electrical Controls and Automation
