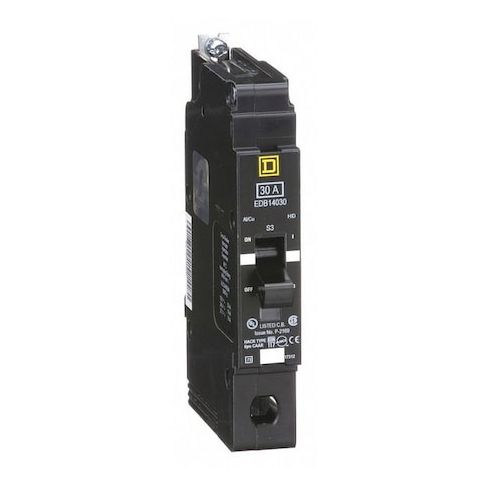

Miniature Circuit Breaker, E FRAME Series, 30A, 1 Pole, 277V AC, 25kA at 120V AC MPN:EDB14030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1131636
Miniature Circuit Breaker, E FRAME Series, 30A, 1 Pole, 277V AC, 25kA at 120V AC
Protect your electrical system with the Square D E FRAME Series Miniature Circuit Breaker, designed for use with NF panelboards. This 30A, 1-pole breaker provides reliable protection against overloads and short circuits, ensuring safe and efficient operation. With a high interrupting capacity of 25kA at 120V AC, it can handle heavy loads and extreme conditions. Ideal for residential and commercial applications, this breaker is perfect for use in areas with high electrical demand, such as kitchens, laundry rooms, and commercial kitchens. Its compact size and easy installation make it a convenient solution for electrical professionals and DIY enthusiasts alike.
Top product features:
- Provides overcurrent protection for a single phase circuit
- Operates at a maximum of 104 degrees Fahrenheit
- Rated for 25 kiloamps at 120V AC
Top product applications:
- Commercial Lighting and Power Distribution Systems
- Industrial Power Distribution Systems
- Residential Electrical Panelboards
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 120/240V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 0.98 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 4.40
- Package Height: 0.90
- Package Weight: 1.05
Product info last updated on January 15, 2026 3:28am UTC
Category: Circuit Protection
