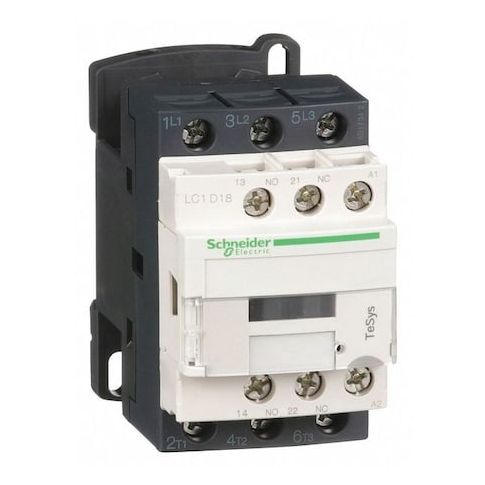

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D18T7

• The IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for operation within specified electrical parameters in motor control and resistive-load applications. It includes auxiliary contacts as specified (1NO/1NC), a 480 V AC coil, and a maximum 690 V AC voltage rating. The unit conforms to IEC standards

• designed for DIN rail or plate mounting within specified parameters. It may be used without an enclosure
• includes a protective cover for added protection. It uses screw clamp terminals and provides 3 normally open main contacts for primary switching
• it is rated for operation at 50/60 Hz within the specified voltage ranges
• compatible with three-phase systems.

  - Action: Non-Reversing

• - Poles/Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: includes auxiliary contacts as specified (1NO/1NC)
• - Auxiliary Contact Form: 1NC/1NO
• - Coil Voltage: 480 V AC
• - Max Voltage Rating: 690 V AC
• - Contactor Style: IEC
• Frame/Series: TeSys Deca
• - Frequency: 50/60 Hz
• - Mounting: DIN Rail, Plate
• - Mounts On: Plate, Rail
• - Electrical Connection: Screw Clamp Terminals
• - Enclosure: May be used without enclosure
• includes a protective cover for added protection
• - Includes Protective Cover: Yes
• - Includes Auxiliary Contacts: Yes
• - Net Weight: 0.33 kg
• - Dimensions: Width 1.77 in
• Depth 3.38 in
• Height 3.03 in
• - Flammability Rating: complies with UL 94 V1 flammability rating
• - Connection Type: Screw Clamp
• - Coil Hold/Operating: 7–7.5 VA hold
• 12–22 ms closing, 4–19 ms opening
• - Standards: UL Listed, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1
• - Phase: Three
• - Working Height: Up to 9842.52 ft
