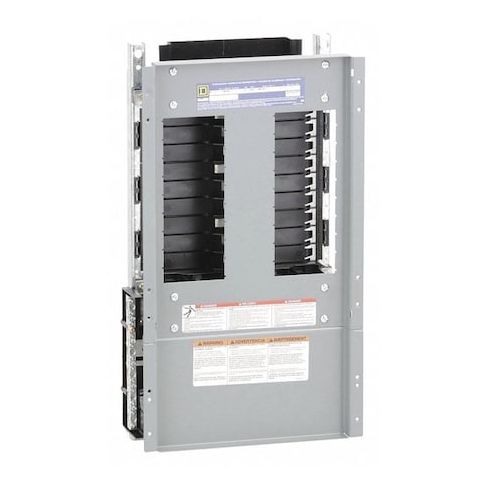

Panelboard Interior, EDB, EDG, EDJ, 18 Spaces, 125A, 277/480V, Convertible Main Lug, 3 Phase MPN:NF418L1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1070246
Panelboard Interior, EDB, EDG, EDJ, 18 Spaces, 125A, 277/480V, Convertible Main Lug, 3 Phase
This Square D panelboard interior is a versatile and reliable solution for electrical distribution systems. Designed for use in commercial and industrial settings, it features 18 spaces for circuit breakers and a convertible main lug design, allowing for easy configuration to meet specific needs. With a 125A rating and 100,000 RMS symmetrical short circuit current rating, it can handle high-demand applications. Suitable for use with NF circuit breakers, it provides a safe and efficient way to distribute power in 3-phase systems, making it an ideal choice for a variety of applications, including office buildings, factories, and data centers.
Top product features:
- Convertible design allows for main lug or main breaker configuration
- Three-phase capability enables the product to handle complex electrical systems
- Bolt-on circuit breaker type provides a secure and easy-to-install connection
Top product applications:
- Electrical panel upgrade
- Commercial building construction
- Industrial facility expansion
Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 125 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 18, Voltage 277/480YV AC, Phase Three, Bus Material Aluminum, Recommended Enclosure 1D687 for Main Lug, 6B429 for Main Breaker, Circuit Breaker Type Bolt-On, For Use With NF Circuit Breakers, Height 21 in, Depth 5 3/4 in, Width 10 7/16 in, Recommended Flush Cover 3TX77 for Main Lug, 3TX81 for Main Breaker
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 13.40
- Package Height: 5.90
- Package Weight: 14.40
Product info last updated on January 28, 2026 6:50am UTC
Category: Circuit Protection
