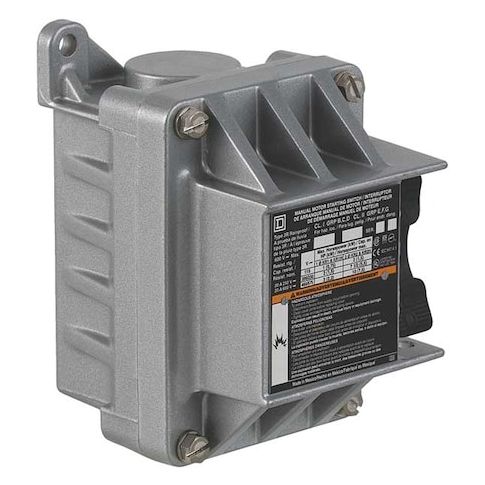

Manual Motor Switch, 20 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 3R/7/9 MPN:2510KR2H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1043874
Manual Motor Switch, 20 A, 3 P, 3 Phase, Toggle, Type K, Class 2510 Series, NEMA 3R/7/9
This manual motor switch is designed for hazardous locations, meeting Class I, Div 1, Group B, C, D and Class II, Div 1, Group E, F, G specifications. It's ideal for use in industries such as oil and gas, chemical processing, and pharmaceuticals, where reliable and safe motor control is crucial. The switch features a toggle operator and screw terminals, making it easy to install and maintain. With a current rating of 20 A and horsepower ratings up to 10 hp, it's suitable for a wide range of applications, from small motors to larger industrial equipment.
Top product features:
- Manual operation through toggle switch
- Three-phase capability with 20 A current rating
- Pilot light indicator
Top product applications:
- Industrial control panels for hazardous locations
- Three-phase motor control systems in chemical plants
- Oil and gas refineries with high-voltage AC motor control requirements
Manual Motor Switch, Current AC 20 A, Hazardous Location Specification Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 10 hp, Includes Pilot Light No, Number of Poles 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.70
- Package Height: 5.50
- Package Weight: 3.50
Product info last updated on March 11, 2026 9:49am UTC
Category: Industrial Electrical Controls and Automation
