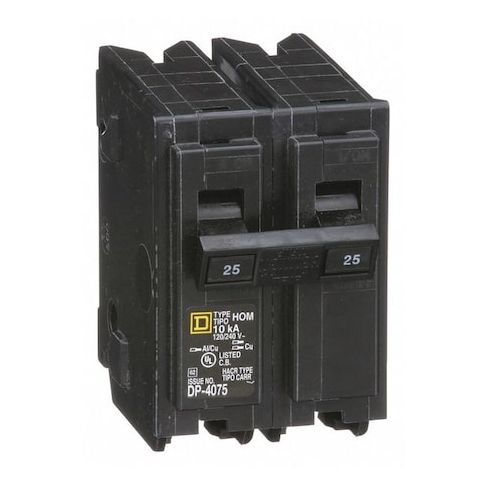

Miniature Circuit Breaker, HOMELINE Series, 25A, 2 Pole, 240V AC, 10kA at 240V AC MPN:HOM225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1017055
Miniature Circuit Breaker, HOMELINE Series, 25A, 2 Pole, 240V AC, 10kA at 240V AC
Protect your home's electrical system with the HOMELINE Series Miniature Circuit Breaker from Square D. This 25A, 2-pole circuit breaker is designed for use in Homeline Load Centers and provides reliable protection against overloads and short circuits. With a maximum air rating of 10kA at 120/240V AC, it's ideal for residential applications. The paddle actuator and plug-in mounting style make installation easy. This circuit breaker is also UL listed and meets or exceeds industry standards for safety and performance. Its compact size and robust design make it a great choice for homeowners and electricians alike.
Top product features:
- Protects against overcurrents with a 10kA short-circuit rating at 240V AC.
- Has a paddle-style actuator for easy manual operation.
- Mounts to a plug-in style connection on a Homeline Load Center.
Top product applications:
- Residential Electrical Panel
- Industrial Electrical Panel
- Commercial Electrical Panel
Miniature Circuit Breaker, Amps 25 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase Single, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 2 in, Depth 2.98 in, Min. Operating Temp. 77 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.67
Product info last updated on February 27, 2026 4:35am UTC
Category: Circuit Protection
