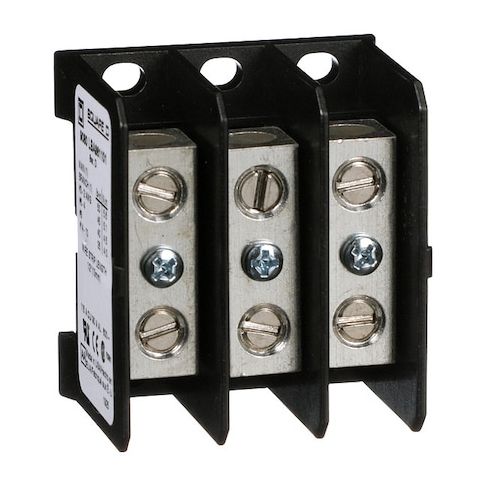

Miniature Distribution Block, Surface Mount, 3 Poles, 14 AWG to 2 AWG, 115 A, 600 V AC/DC, Black MPN:9080LBA361101
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0976236
Miniature Distribution Block, Surface Mount, 3 Poles, 14 AWG to 2 AWG, 115 A, 600 V AC/DC, Black
The Square D Miniature Distribution Block is a versatile and reliable power distribution solution for a variety of applications. Designed for surface mounting, this 3-pole block can handle currents of up to 115 A and voltages of up to 600 V AC/DC, making it suitable for use with both aluminum and copper conductors. Its compact size and ease of installation make it an ideal choice for use in control panels, switchboards, and other electrical systems where space is limited. The block is also designed for use with a wide range of wire sizes, from 14 AWG to 2 AWG.
Top product features:
- Surface mount design allows for easy installation
- Three pole configuration enables connection of multiple conductors
- Supports conductors up to 2 AWG for flexible wiring options
Top product applications:
- Electrical Panel Installation
- Electrical Subpanel Installation
- Motor Control Panel Upgrade
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2 AWG, Load Connections/Pole 1, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 115 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 1.62 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.20
- Package Height: 1.70
- Package Weight: 0.20
Product info last updated on January 15, 2026 5:31am UTC
Category: Electrical Connectors
