Power Distribution Block, Open, 2 Pole, 335 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA264108
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0853609

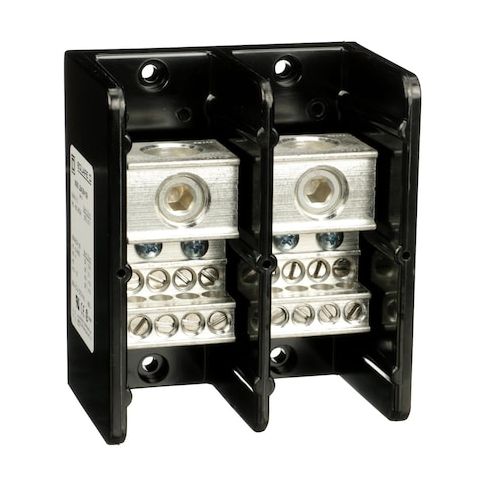

Power Distribution Block, Open, 2 Pole, 335 A Copper, 600 V AC/DC, Surface Mount
This Power Distribution Block from Square D is a reliable and efficient solution for managing high-current power distribution in a variety of applications. Ideal for use in electrical panels, switchboards, and other high-power systems, it features a 2-pole design with a maximum current rating of 335A and a maximum voltage rating of 600V AC/DC. The block's surface mount design and compact size make it easy to install and integrate into existing systems. Suitable for use with aluminum or copper conductors, it's perfect for applications such as industrial power distribution, commercial electrical systems, and data center power infrastructure.
Top product features:
- Distributes power to 8 load connections per pole
- Accepts line connections up to 600 kcmil copper wire size
- Supports a maximum current of 335 A for copper conductors
Top product applications:
- Electrical panel upgrades
- Industrial equipment installations
- Commercial building power distribution systems
Power Distribution Block 600V 335A Tlb, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 600 kcmil, Load Connections/Pole 8, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 335 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 2, Overall Depth 2.91 in, Overall Length 4.75 in, Overall Width 4.16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.69
Product info last updated on March 4, 2026 4:09am UTC
Category: Electrical Connectors
