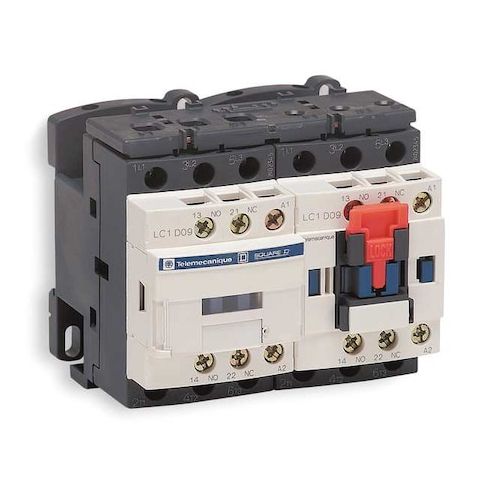

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LC2D09BD
Free Shipping
In Stock
The Square D IEC Magnetic Contactor is a reliable and versatile control device designed for motor control and resistive loads in a variety of applications. Its 24V DC coil and 1NO/1NC auxiliary contacts provide efficient switching and control capabilities. The unit's reversing action and 3-pole configuration make it suitable for use in a range of industries, including manufacturing, HVAC, and power generation. With its high durability and reliability, the IEC Magnetic Contactor is an ideal choice for applications where consistent and efficient control is critical. Its compact design and screw clamp terminals make it easy to integrate into existing systems.
Top product features:
- Reversing action allows for bidirectional control of loads
- 3-pole design enables the control of three-phase power circuits
- Screw clamp terminals provide secure and easy electrical connections
Top product applications:
- Motor control applications, such as reversing the direction of a motor in a conveyor system or a pumping system.
- Resistive load applications, including lighting and heating systems.
- DC power supply applications, including powering electronic devices and systems.
The IEC Magnetic Contactor is a 3-pole, reversing control device from the TeSys Deca line that switches power circuits in motor control and resistive loads. It features a 24 V DC coil and 1NO/1NC auxiliary contacts, with screw clamp terminals and no enclosure. The unit is rated for operation within the specified voltage ranges. It conforms to IEC standards and is compatible with standard mounting configurations.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 24 V DC
- - Auxiliary contacts: 2 (1NO/1NC)
- - Auxiliary contact form: 1NC/1NO
- - Electrical connection: Screw Clamp Terminals
- - Series: TeSys Deca
- - Frequency: 50/60 Hz
- - Rated voltage: 690 V AC
- 300 V DC
- - Rated insulation volts: 600/690 V
- - IP rating: IP20
- - Embedded surge suppressor: Yes
- - Includes protective cover: Yes
- - Includes electrical interlock: Yes
- - Enclosure: No Enclosure
- - Net weight: 1.017 kg
- - Dimensions (W x D x H): 3.54 in x 3.74 in x 3.03 in
- - Maximum operating temperature: 140°F
- Minimum operating temperature: -40°F
- - Electrical durability: 0.6 Mcycles (25 A, AC-1, <440 V)
- 2 Mcycles (9 A, AC-3, <440 V)
- - Mechanical durability: 30 Mcycles
- - Rated making capacity: 250 A @ 440V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.40
- Package Height: 5.00
- Package Weight: 2.49
