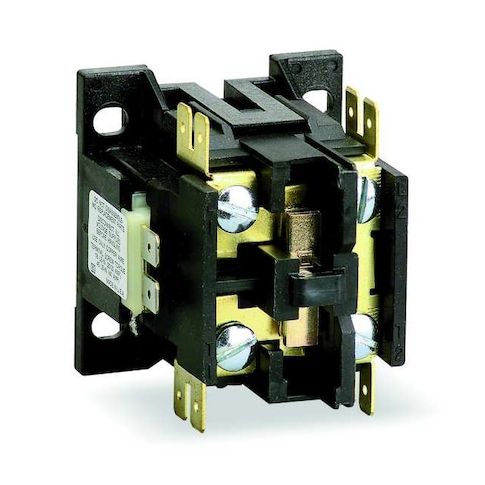

Definite Purpose Magnetic Contactor, 208V-240V AC, 1 P, Non-Reversing, 1 Phase, Quick Connect MPN:8910DP31V09
Free Shipping
In Stock
The SQUARE D 8910DP31V09 Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed to control power flow in heavy-duty applications. Suitable for use in HVAC, data processing, and manufacturing, this tool responds to electrical impulses to manage and automate machinery operations. Its non-reversing mode ensures constant current flow direction, while its quick connect terminals and binder head facilitate easy attachment to electrical circuits. With a maximum current rating of 30A inductive and 40A resistive, this contactor controls up to 3 horsepower in single-phase applications, making it an ideal solution for industrial power systems.
Top product features:
- Non-Reversing mode keeps current flow direction constant during operation.
- Operates within a voltage range of 208-240V AC to control power flow in industrial and commercial applications.
- Equipped with binder head and quick connect terminals for easy attachment to an electrical circuit.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DP31V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's primarily used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing mode keeps current flow direction constant during operation.
- Coil Voltage: Operates within a voltage range of 208-240V AC which controls power flow in industrial and commercial applications.
- Electrical Connection: Equipped with binder head and quick connect terminals for easy attachment to an electrical circuit.
- Frequency: Rated for operation at 50/60 Hz frequency, suitable for various power systems.
- Full Load Amps-Inductive & Resistive: Rated for a maximum current of up to 30 A (inductive) and 40 A (resistive).
- Horsepower @ Single Phase -120V & 240V AC: Controls maximum power outputs up to 2 hp at single-phase,120-volt alternating current system and up to 3 hp at single-phase, 240-volt alternating current system respectively
- Pole Contact Composition: Contains one Normally Open contact that determines how electrical circuits are controlled during operation
- Rated Operational Voltage : Rated for controlling an electrical circuit at a maximum voltage level of up to 600 V AC
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.30
- Package Height: 3.30
- Package Weight: 0.51
