Power Distribution Block, Open, 3 Pole, 620 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA365202
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0801230

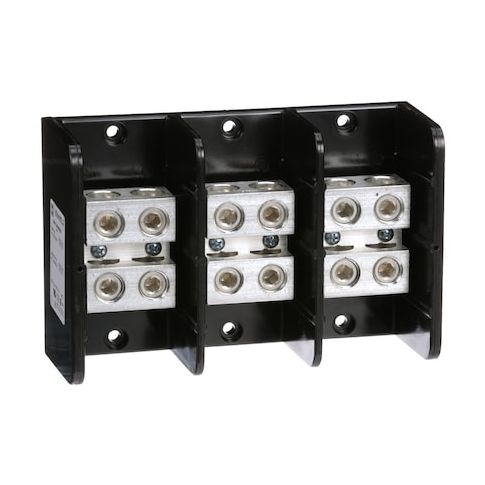

Power Distribution Block, Open, 3 Pole, 620 A Copper, 600 V AC/DC, Surface Mount
The Square D Power Distribution Block is a reliable and efficient solution for managing power in high-current applications. Designed for surface mounting, this 3-pole block can handle up to 620A of copper conductor and 600V AC/DC, making it ideal for use in industrial settings, data centers, and commercial facilities. Its compact size of 8.54 x 5.5 x 3.13 inches allows for easy installation in tight spaces. With a maximum wire size of 350 kcmil, it can accommodate a wide range of conductor materials, including aluminum and copper. Ideal for applications where high-power distribution is required.
Top product features:
- Power Distribution for up to 620 A of copper conductor current
- Supports line connections of up to 350 kcmil and load connections of up to 350 kcmil
- Mounts to a surface, allowing for easy installation
Top product applications:
- Panelboards
- Industrial electrical systems
- High-power electrical distribution systems
Power Distribution Block 600V 620A, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 2, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 620 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 3.13 in, Overall Length 5.5 in, Overall Width 8.54 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.09
Product info last updated on January 15, 2026 7:19am UTC
Category: Electrical Connectors
