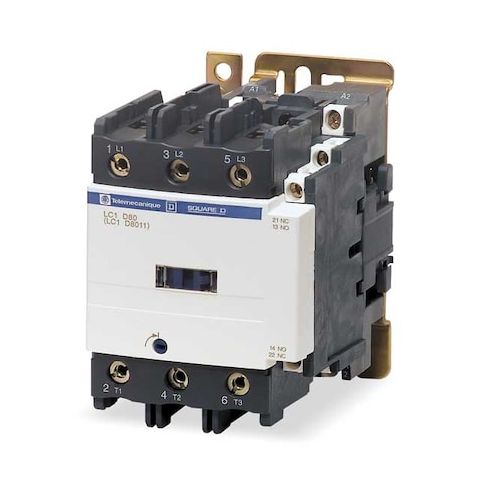

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D80BD

• The SQUARE D - IEC Magnetic Contactor is a non-reversing, three-pole device intended for use in motor control and resistive load applications. It operates with a coil voltage of 24V DC and features an auxiliary contact configuration of 1NO/1NC. The contactor has screw clamp terminals for electrical connection and does not include an enclosure. With dimensions of 7.32 inches in depth, 5 inches in height, and 3.34 inches in width, this product can be mounted on either a DIN rail or plate.

  Key Features:

• - Non-reversing action suitable for various industrial applications.
• - Auxiliary Contact Form: 1NC/1NO provides flexibility in circuit design.
• - Specified operation within control circuit voltage ranges from drop-out DC: 0.1 to 0.3 Uc (at -40 to70°C) and operational DC: up to a maximum of 1-1.1 Uc (temperatures between55-70°C).
• - Electrical durability specified at a maximum of800000 cycles under certain conditions.
• - Rated for handling full-load amps-inductive upto80 A, and full-load amps-resistive upto125 A.
• -Compatible with horsepower ratings from single-phase operations (7½ hp at120V AC
• 15 hp at240V AC), through three-phase operations(up-to60 hp at600VAC).
• -Maximum operating temperature limit set at140 Degrees F with minimum operating temperature limit set as low as -40 Degrees F.
• -Rated insulation volts are600/1000V for power circuits and600/690V for signalling circuits.
• -The product is designed in accordance with various standards including BV, CCC, CSA C22.2 No14 among others which may be relevant in different regions globally.
