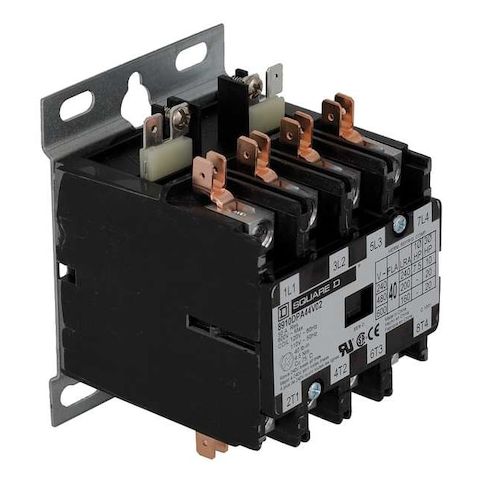

Definite Purpose Magnetic Contactor, 24V AC, 4 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA44V14
Free Shipping
In Stock
The SQUARE D 8910DPA44V14 Definite Purpose Magnetic Contactor is a reliable and versatile tool for managing and automating heavy-duty machinery operations in various industries, including HVAC, data processing, and manufacturing. Its non-reversing action ensures a constant current flow direction, while its 24V AC coil voltage and four-pole design enable it to switch multiple circuits simultaneously. With a capacity to control up to 20 hp at 480V three-phase power supply, this contactor is ideal for controlling motors and other heavy-duty equipment. Its compact design and quick connect terminals make it easy to integrate into existing systems, increasing efficiency and productivity.
Top product features:
- Non-Reversing Action: The contactor functions with a constant current flow direction.
- Rated for operation at a coil voltage of 24V AC.
- Equipped with four poles that allow it to switch multiple circuits simultaneously.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DPA44V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation at a coil voltage of 24V AC.
- Electrical Connection: Quick connect terminals
- Box lugs – These are methods through which the contactor is attached to an electrical circuit.
- Full Load Amps-Inductive: Designed for handling up to 40 A continuously when controlling inductive loads within specified conditions.
- HP @ 3 Phase - 480V: Has capacity to control motors and other heavy-duty equipment at a maximum horsepower of 20 hp at three-phase power supply of 480 volts.
- Number of Poles: Equipped with four poles that allow it to switch multiple circuits simultaneously for versatile control in various industrial applications.
- Rated Operational Voltage: Rated for control of an electrical circuit at operational voltages up to 600 V AC
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.90
- Package Height: 4.00
- Package Weight: 1.27
