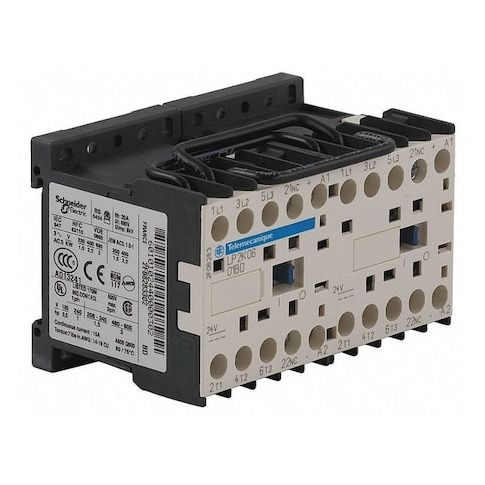

IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Reversing, Screw Clamp MPN:LP2K0601BD
Free Shipping
In Stock
The SQUARE D IEC Miniature Magnetic Contactor is a versatile and reliable solution for motor control applications. Its 24V DC coil and 3-pole reversing action make it suitable for a wide range of uses, from industrial automation to commercial equipment control. With its screw clamp terminals and mounting options for DIN rail or plate, this contactor is easy to integrate into existing systems. Its high rating for operation and durability ensures reliable performance in demanding environments, making it an ideal choice for applications requiring high efficiency and low maintenance.
Top product features:
- It has 3 normally open main contacts plus 1 normally closed auxiliary contact.
- It can operate within a specified voltage range and is suitable for motor control applications.
- It has a reversing action and is designed for mounting on DIN rail or plate.
Top product applications:
- Motor control applications
- Motor starters
- Reversing control systems
The SQUARE D IEC Miniature Magnetic Contactor is an IEC-standard, reversing, 3-pole contactor with a 24 V DC coil. It uses screw clamp terminals, mounts on DIN rail or plate, and includes 3 normally open main contacts plus 1 normally closed auxiliary contact. Rated for operation within the specified voltage range
- suitable for motor control applications as per product specifications.
Key features
- - Coil voltage: 24 V DC
- - Action: Reversing
- - Poles: 3P
- Main contacts: 3 NO
- - Auxiliary contacts: 1 NC (Instantaneous 1 NC)
- - Preassembled with Reversing Power Busbar
- - Terminals: Screw clamp
- - Mounting: DIN Rail, Plate
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
- - Maximum voltage: 690 V AC
- Frequency: 50/60 Hz
- - Ambient operating/storage temperatures: -25 to 50°C operating
- -50 to 80°C storage
- - Net weight: 0.48 kg
- - Dimensions (W x H x D): 3.54 in x 2.28 in x 2.24 in
- - Impedance: 3 mΩ
- - Insulation resistance: >10 MΩ (Signalling circuit)
- - Impulse withstand: 8 kV
- - Mechanical durability: 5 Mcycles
- - Electrical durability: 1.3 Mcycles (Power 6 A AC-3 <440 V)
- 1.3 Mcycles (Signalling 6 A AC-3e <440 V)
- - Rated insulation voltage: 600/690 V
- - Rated operational current: 6 A (AC-3 up to 440 V, and AC-3e as specified)
- - Operating cycles: Up to 3600 cyc/h
- - Operating altitude: 2000 m (without derating)
