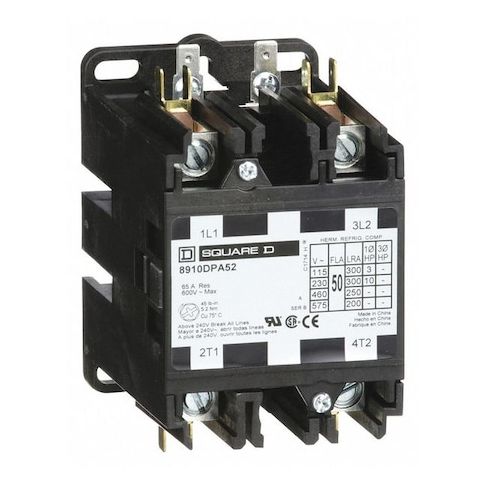

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect MPN:8910DPA52V02
Free Shipping
In Stock
The SQUARE D 8910DPA52V02 is a reliable and versatile Definite Purpose Magnetic Contactor designed for heavy-duty applications in various industries. Suitable for use in HVAC, data processing, and manufacturing, this tool efficiently controls power flow and automates machinery operations. Its non-reversing action ensures consistent current flow direction, while its high current capacity supports up to 50A inductive and 65A resistive loads. Compatible with single-phase power supplies up to 10HP, this contactor is ideal for managing and automating machinery in a range of settings, providing reliability and efficiency in demanding industrial applications.
Top product features:
- Operates with a constant current flow direction, allowing for non-reversing control of power supply.
- Rated for operation within the specified voltage range of 120V AC, enabling safe and reliable use in various applications.
- Compatible with current levels up to 50 A (inductive loads) and up to 65 A (resistive loads), supporting a wide range of heavy-duty applications.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The SQUARE D - 8910DPA52V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
- Depth: Extends 3.67 inches into its mounting surface or enclosure.
- Frequency: Rated for operation within the specified frequency range of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Compatible with current levels up to 50 A (inductive loads) and up to 65 A (resistive loads).
- Horsepower @ Single Phase - Compatible with horsepower ranges from 3 hp at single-phase power supply of 120 volts up to 10 hp at single-phase power supply of 240 volts
- Locked Rotor Load: Compatible with varying levels of current during instances where an electric motor is started but unable to rotate.
- No Enclosure NEMA Rating & Open Enclosure Type: Does not include additional protective casing against environmental factors such as dust and moisture
- intended for indoor use where exposure is limited.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.70
- Package Height: 4.30
- Package Weight: 1.40
