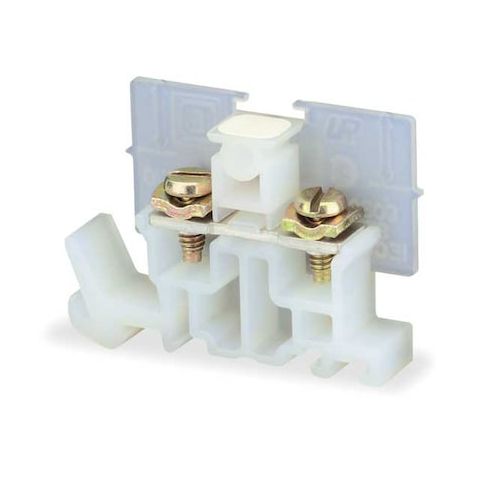

Terminal Block, Self-Lifting Pressure Wire Connector, 1 Pole, 40 A, 600 V AC/DC, 12 AWG, Natural MPN:9080GP6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0598071
Terminal Block, Self-Lifting Pressure Wire Connector, 1 Pole, 40 A, 600 V AC/DC, 12 AWG, Natural
This self-lifting pressure wire connector is a versatile and reliable solution for various electrical applications. Suitable for use in AC and DC systems up to 600V, it features a 1-pole design and can handle currents of up to 40A. The natural-colored terminal block is designed for use with copper conductors and is compatible with both solid and stranded wires. Its compact size and DIN rail mounting make it ideal for use in industrial control panels, switchgear, and other applications where space is limited. The connector's high-quality design ensures secure and reliable connections, reducing the risk of electrical faults and downtime.
Top product features:
- Self-lifting pressure wire connector allows for easy connection and disconnection of wires.
- Has a screw clamp connection type for secure and reliable wire attachment.
- Rated for 40 A of current, making it suitable for high-power applications.
Top product applications:
- Control Panel Wiring
- Industrial Automation Systems
- Electrical Panel Building
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 40 A, For Minimum Wire Size 18 AWG, For Maximum Wire Size 12 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.37 in, Overall Length 1.48 in, Overall Width 1.8 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 0.40
- Package Height: 1.30
- Package Weight: 0.02
Product info last updated on January 15, 2026 7:58am UTC
Category: Electrical Connectors
