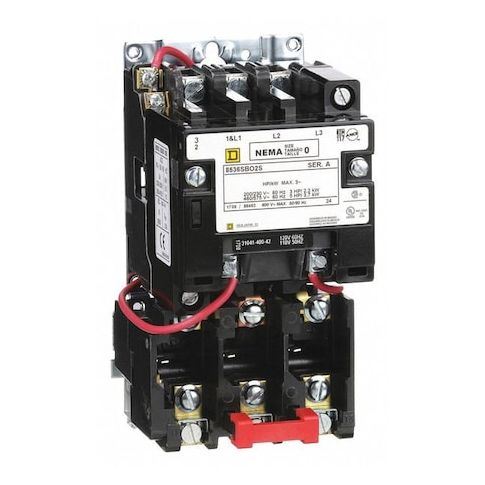

Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp MPN:8536SBO2V02S
Free Shipping
In Stock
The Square D Type S NEMA motor starter is a reliable and efficient solution for full voltage starting and stopping of AC squirrel cage motors. Ideal for use in a wide range of applications, including industrial and commercial settings, this non-reversing starter provides a simple and cost-effective way to control motor operation. With a 5 kA maximum SCCR and UL listed and CSA certified, it meets the highest standards for safety and performance. Its compact design and easy installation make it a popular choice among contractors and facility managers. Perfect for use in manufacturing, HVAC, and other industries.
Top product features:
- Magnetic Motor Starter, Non-Reversing, No Auxiliary Contacts, 120V AC, 3 P, Screw Clamp from Square D
- It has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions.
- It has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse.
Top product applications:
- Full voltage starting and stopping of AC squirrel cage motors
- Starting and stopping of 3 HP motors at 200 and 230 VAC
- Starting and stopping of 5 HP motors at 460 and 575 VAC
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/220 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 5.80
- Package Height: 4.50
- Package Weight: 4.05
