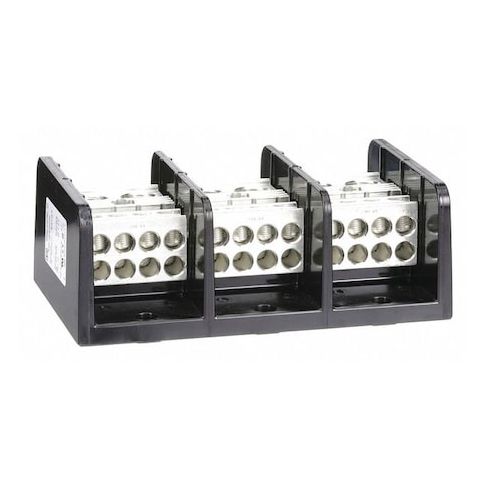

Power Distribution Block, Open, 3 Pole, 760 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA365208
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0571070
Power Distribution Block, Open, 3 Pole, 760 A Copper, 600 V AC/DC, Surface Mount
The Square D Power Distribution Block is a reliable and efficient solution for managing electrical power in a variety of applications. With a maximum current rating of 760 A and a voltage rating of 600 V AC/DC, this block is suitable for use in commercial and industrial settings. Its 3-pole design and surface mount installation make it easy to integrate into existing systems. The block can handle copper wire sizes from 4 AWG to 500 kcmil and can support up to 8 load connections, making it an ideal choice for a wide range of applications, including power distribution and circuit protection.
Top product features:
- Power Distribution Block has 3 poles for line connections.
- The product can handle a maximum current of 760 A.
- It has 8 load connections per pole for loading devices.
Top product applications:
- Panelboards
- Switchgear and switchboards
- Medium-voltage switchgear and switchboards
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 8, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2/0 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 3.13 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.66
Product info last updated on January 15, 2026 7:55am UTC
Category: Electrical Connectors
