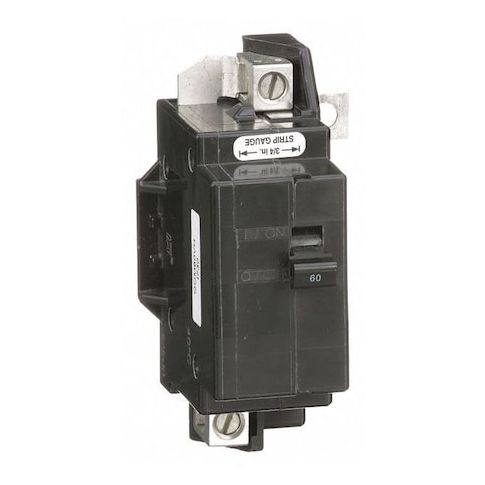

Miniature Circuit Breaker, QO Series, 60A, 2 Pole, 120/240V AC, 22kA at 120/240V AC MPN:QOM60VH
Free Shipping
In Stock
Protect your electrical system with the Square D QO Series 60A, 2-Pole Miniature Circuit Breaker. This reliable device provides overcurrent protection and switching on AC and DC systems, ensuring safe and efficient operation. With its over-center, trip-free toggle mechanism and quick make, quick break action, you can quickly identify and respond to circuit issues. Ideal for applications such as residential and commercial electrical panels, this circuit breaker offers 22kA breaking capacity and bolt-on mounting for easy installation. UL Listed and CSA Certified, it's a trusted solution for maintaining a secure and reliable electrical system.
Top product features:
- Overcenter, trip-free toggle mechanism for quick and safe switching.
- VisiTrip trip indication provides a visual signal that the circuit has tripped and interrupted the circuit.
- 22kA breaking capacity for reliable overcurrent protection.
Top product applications:
- Overcurrent protection and switching on ac and dc systems
- Main breaker in residential and commercial electrical panels
- Overcurrent protection in industrial electrical systems
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 4.30
- Package Height: 4.20
- Package Weight: 1.25
