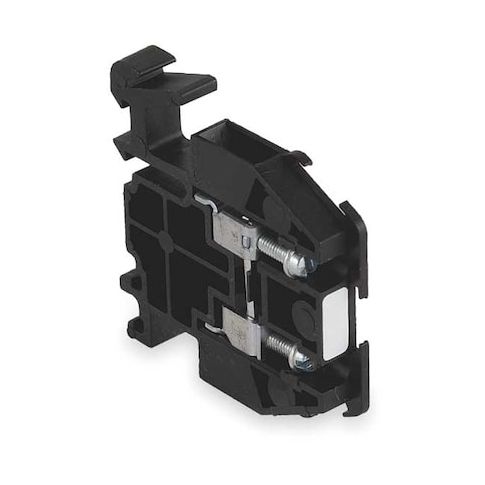

Terminal Block, Solderless Box Lug, 1 Pole, 30 A, 600 V AC/DC, 10 AWG, Screw Termination, Black MPN:9080GMB6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0543304
Terminal Block, Solderless Box Lug, 1 Pole, 30 A, 600 V AC/DC, 10 AWG, Screw Termination, Black
This Square D terminal block is a reliable and efficient solution for connecting and protecting electrical circuits. With a 30 A current rating and 600 V AC/DC voltage rating, it can handle a wide range of applications, from residential to commercial. The screw termination and DIN mounting type make it easy to integrate into existing systems. The black housing color makes it easy to identify in a crowded electrical panel. This terminal block is ideal for use in industrial control panels, motor control centers, and other high-current applications where a secure and reliable connection is critical.
Top product features:
- Solderless design for easy wire connection
- Screw termination for secure wire attachment
- Supports 1 pole, 30 A, 600 V AC/DC connections
Top product applications:
- Control Panel Wiring
- Electrical Distribution Systems
- Switchgear and Circuit Breaker Panels
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Black, Maximum Voltage 600 V AC/DC, Mounting Type DIN, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.24 in, Overall Length 1.79 in, Overall Width 1.72 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.70
- Package Height: 0.30
- Package Weight: 0.02
Product info last updated on January 15, 2026 7:49am UTC
Category: Electrical Connectors
