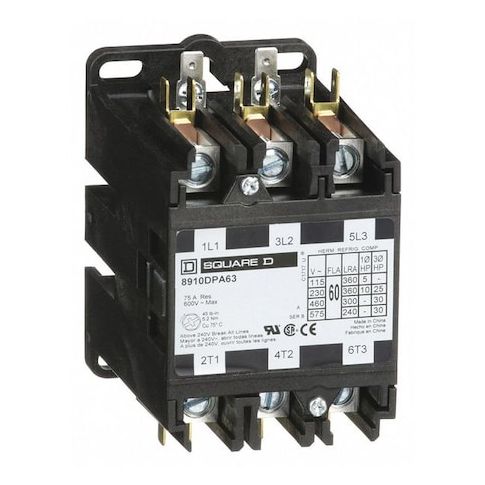

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA63V02
Free Shipping
In Stock
The SQUARE D 8910DPA63V02 Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed for heavy-duty applications. It controls the flow of power in machinery operations, automating processes in various sectors such as HVAC, data processing, and manufacturing. With its non-reversing action and 120V AC coil voltage, it ensures constant current flow direction and safe operation. Compatible with 50/60 Hz frequencies and capable of managing currents up to 75A, this contactor is ideal for controlling motors, transformers, and heating loads. Its compact design and quick connect terminals make it easy to integrate into existing electrical systems.
Top product features:
- Non-Reversing Action: The contactor functions with a constant current flow direction.
- Rated for operation within the specified voltage range of 120V AC.
- Quick Connect Terminals: Allows for easy electrical connections.
Top product applications:
- HVAC management and automation
- Data processing machinery operations
- Manufacturing machinery control
The SQUARE D - 8910DPA63V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
- Electrical Connection: Quick connect terminals
- Box lugs – These are methods by which this contactor can be attached to an electrical circuit.
- Frequency: Rated for operation at frequencies of 50/60 Hz, which may impact its compatibility with different power systems.
- Full Load Amps-Inductive & Resistive: Specified to manage currents up to 60 A for inductive loads like motors or transformers and up to 75 A for resistive or heating loads. Overheating and damage may occur if these limits are exceeded.
- Horsepower @ Single Phase & Three Phase: Compatible with controlling various levels of horsepower based on the phase and voltage level, ranging from single-phase at 120 volts (5 hp) up to three-phase at 600 volts (50 hp). Actual performance can vary based on specific conditions.
- Pole Contact Composition: Contains three Normally Open contacts that determine how electrical circuits are controlled during operation
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.70
- Package Height: 4.50
- Package Weight: 1.50
