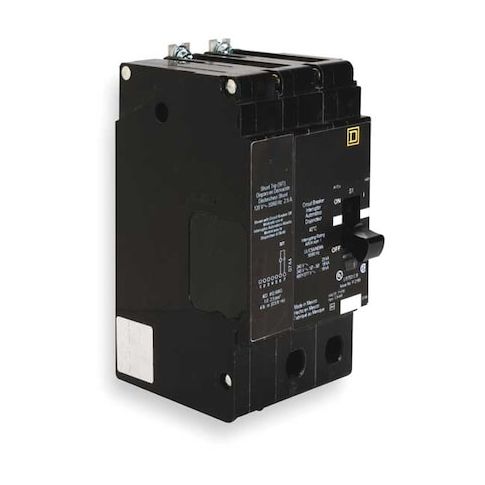

Miniature Circuit Breaker, E FRAME Series, 15A, 2 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB24015SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0420691
Miniature Circuit Breaker, E FRAME Series, 15A, 2 Pole, 277/480V AC, 25kA at 120V AC
The Square D E FRAME Series Miniature Circuit Breaker is a reliable and efficient solution for protecting electrical circuits in commercial and industrial applications. With a 15A rating and 277/480V AC voltage range, this circuit breaker is ideal for use in Square D NF Panelboards. Its shunt trip feature allows for fast and easy operation, while its toggle actuator provides a secure and reliable connection. Suitable for use in single-phase systems, this circuit breaker offers a maximum AIR rating of 18kA at 277/480V AC, making it a great choice for applications where high current capacity is required.
Top product features:
- 15A rating allows for safe and efficient power distribution
- Shunt trip circuit breaker type provides quick and automatic disconnection in case of an overload or short circuit
- Bolt-on mounting style enables easy and secure installation in Square D NF panelboards
Top product applications:
- Residential electrical panels
- Commercial electrical panels
- Industrial electrical panels
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 4.70
- Package Height: 4.60
- Package Weight: 2.90
Product info last updated on February 11, 2026 1:47pm UTC
Category: Circuit Protection
