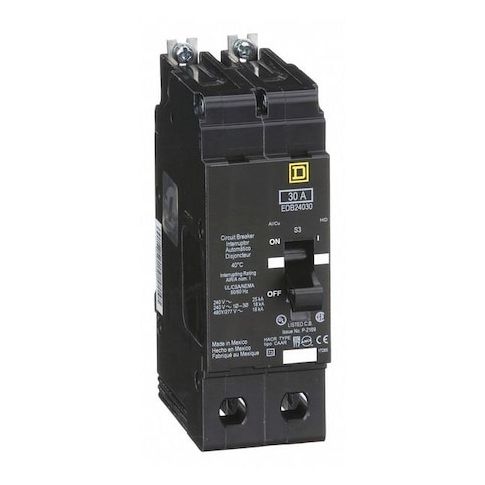

Miniature Circuit Breaker, E FRAME Series, 30A, 2 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB24030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0374744
Miniature Circuit Breaker, E FRAME Series, 30A, 2 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical system with Square D's E FRAME Series Miniature Circuit Breaker, designed for use in NF panelboards. This 30A, 2-pole breaker offers reliable protection against overloads and short circuits, with a maximum air rating of 18kA at 277/480V AC. Its compact size and bolt-on mounting style make it easy to install and maintain. Suitable for a variety of applications, including commercial and industrial settings, this circuit breaker provides peace of mind and helps prevent electrical fires. With its high-quality construction and reliable performance, it's the perfect choice for ensuring the safety and efficiency of your electrical system.
Top product features:
- Trips at 25kA at 120V AC
- Has a 30A current rating
- Has a 277/480V AC voltage rating
Top product applications:
- Industrial electrical panelboards
- Commercial electrical distribution systems
- Residential electrical service panels
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 1.96 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 4.60
- Package Height: 2.40
- Package Weight: 2.20
Product info last updated on January 15, 2026 7:45am UTC
Category: Circuit Protection
