Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:8910DPA93V14
Free Shipping
In Stock

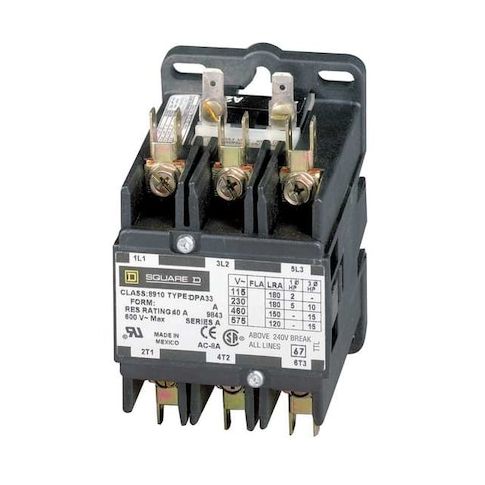

The Square D 8910DPA93V14 Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed for controlling power flow in industrial applications. This non-reversing contactor is ideal for managing and automating machinery operations in HVAC, data processing, and manufacturing sectors. With a 24V AC coil voltage and 3-phase connection, it can handle up to 90A inductive loads and 120A resistive loads. Rated for controlling up to 50 hp, it features three normally open contacts for precise circuit control. Certified by UL and CSA, this contactor ensures safe and reliable operation in demanding industrial environments.
Top product features:
- Operates by responding to electrical impulses, allowing or interrupting power supply based on the need.
- Non-Reversing action ensures that the current flow direction remains constant during operation.
- Comprises of three Normally Open (NO) contacts which determine how electrical circuits are controlled during operation.
Top product applications:
- HVAC management
- Data processing automation
- Manufacturing machinery operations
The SQUARE D - 8910DPA93V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's primarily used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – this indicates that the current flow direction remains constant during operation.
- Coil Voltage: The coil voltage requirement is 24V AC which effectively engages or disengages its electrical circuit.
- Electrical Connection: This contactor uses box lugs and quick connect terminals for attachment to an electrical circuit.
- Full Load Amps-Inductive/Resistive: It is designed for handling up to a capacity of up to, but not exceeding, 90 A when controlling inductive loads (like motors) and up to, but not exceeding,120 A with resistive loads.
- Horsepower Ratings: It is rated for controlling from 7.5 hp at single phase power supply of 115 volts up to a maximum of 50 hp at three-phase power supply within the range of either 460 volts or 575 volts
- Pole Contact Composition: Comprises of three Normally Open (NO) contacts which determine how electrical circuits are controlled during operation
- Certifications & Standards Compliance: Certified by UL
- CSA which are known standards organizations that evaluate product safety and quality for use in various industrial applications.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.60
- Package Height: 5.90
- Package Weight: 3.75
