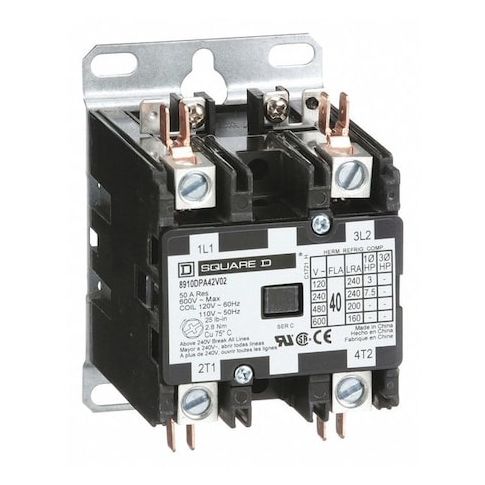

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect MPN:8910DPA42V02
Free Shipping
In Stock
The Square D 8910DPA42V02 Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed for controlling power in industrial applications. It responds to electrical impulses to manage and automate machinery operations in sectors such as HVAC, data processing, and manufacturing. This non-reversing contactor offers flexibility with box lug and quick connect terminals, and is compatible with a range of horsepower loads. By providing reliable power control, it helps prevent overheating and damage, ensuring efficient and safe operation. Its compact design makes it ideal for use in a variety of industrial settings, including factories, data centers, and commercial buildings.
Top product features:
- Responds to electrical impulses to control the flow of power in heavy-duty applications
- Operates at a specific voltage requirement of 120 V AC 60 Hz to effectively engage or disengage its electrical circuit controlling power flow
- Connects to an electrical circuit through box lugs or quick connect terminals offering flexibility during installation
Top product applications:
- HVAC systems
- Data processing centers
- Manufacturing machinery
The SQUARE D - 8910DPA42V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – this indicates that the current flow direction remains constant during operation.
- Coil Voltage: The coil voltage requirement is 120V AC which effectively engages or disengages its electrical circuit controlling power flow.
- Control Circuit Voltage: Operates at a specific voltage requirement of 120 V AC 60 Hz
- 110 V AC 50 Hz depending on frequency and geographical region.
- Electrical Connection: Connects to an electrical circuit through box lugs or quick connect terminals offering flexibility during installation.
- Enclosure Type: Open – this means there's no additional protective casing around it and it is not specifically designed to resist environmental factors such as dust and moisture.
- Full Load Amps-Inductive & Resistive: Rated for operation with maximum currents of up to 40 A (inductive loads) and up to 50 A (resistive loads). Overheating or damage may occur if these limits are exceeded
- Horsepower @ Single Phase - Compatible with a range of horsepower, from a minimum of 3 hp at a single-phase power supply of 120 volts, up to a maximum of 7-1/2 hp at a single-phase power supply of 240 volts
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.20
- Package Height: 3.70
- Package Weight: 0.98
