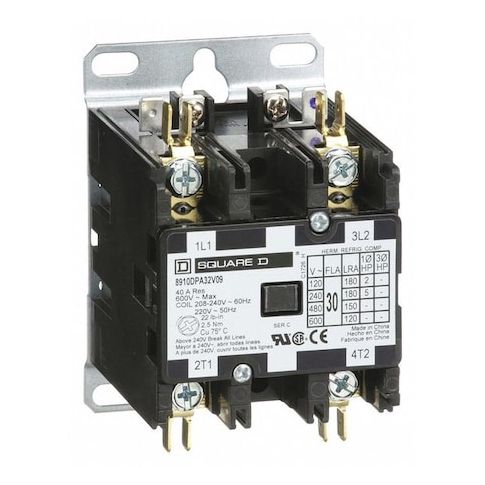

Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P, Non-Reversing, 1 Phase MPN:8910DPA32V09
Free Shipping
In Stock
The Square D 8910DPA32V09 Definite Purpose Magnetic Contactor is a reliable and efficient solution for controlling power flow in industrial and commercial applications. Designed for heavy-duty use, this contactor operates within a 208-240V AC voltage range, making it suitable for a wide range of sectors, including HVAC, data processing, and manufacturing. Its non-reversing action and quick connect terminals ensure safe and easy operation, while its 30A inductive and 40A resistive current capacity support high-power applications. With a compact design and compatibility with 50/60 Hz frequency, this contactor is an ideal choice for managing and automating machinery operations.
Top product features:
- The product operates within a voltage range of 208-240V AC to control power flow in industrial and commercial applications.
- The contactor functions with a constant current flow direction, making it suitable for applications where power flow must be maintained in one direction.
- The contactor is rated for a maximum current capacity of up to 30 A (inductive) and up to 40 A (resistive), making it suitable for controlling power-hungry equipment.
Top product applications:
- HVAC applications
- Data processing applications
- Manufacturing applications
The SQUARE D - 8910DPA32V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Operates within a voltage range of 208-240V AC which controls power flow in industrial and commercial applications.
- Depth: Measures at 3.12 inches from front to back indicating its extension into mounting surface or enclosure.
- Electrical Connection: Quick connect terminals
- Binder head – These are methods by which this contactor can be attached to an electrical circuit.
- Frequency: Rated for operation within the 50/60 Hz frequency range, affecting its compatibility with various power systems.
- Full Load Amps-Inductive & Resistive: Rated for a maximum current capacity of up to 30 A (inductive) and up to 40 A (resistive). Overheating or damage may occur if these limits are exceeded.
- Horsepower @ Single Phase - Compatible with control ranges from a minimum of 2 hp in a single-phase, 120-volt AC system, up to a maximum of 5 hp in a single-phase, 240-volt AC system. Performance may vary depending on specific conditions."
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.50
- Package Height: 4.00
- Package Weight: 1.00
