Low Voltage Distribution Transformer, 225 kVA, NEMA 1, 277/480V AC, 480V AC MPN:EX225T1814H
Low Voltage Distribution Transformer, 225 kVA, NEMA 1, 277/480V AC, 480V AC

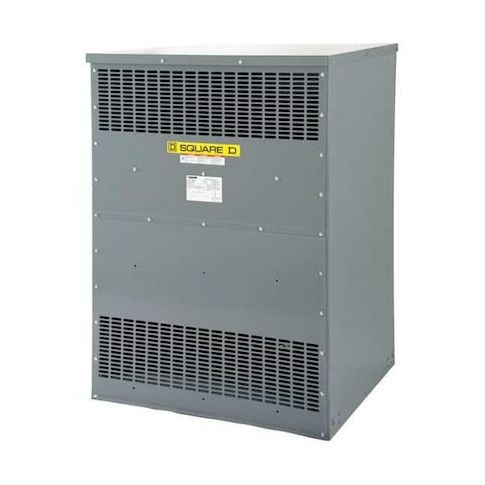

This 225 kVA low voltage distribution transformer from Square D is ideal for various applications, including commercial and industrial settings. Its 277/480V AC output provides a reliable and efficient step-down power solution. The transformer's aluminum windings and outdoor-rated enclosure ensure durability and protection from the elements. Its NEMA 1 rating makes it suitable for indoor use, and its convertible design allows for easy upgrade to NEMA 3R for outdoor applications. With a 150-degree temperature rise and 60 Hz operation, this transformer is a reliable choice for a range of power distribution needs.
Top product features:
- Step Down Voltage Function
- Aluminum Winding Material
- Outdoor Rated Enclosure
Top product applications:
- Industrial Lighting Systems
- Commercial Power Distribution Systems
- Factory Automation and Control Systems
Dry Type Power Distribution Transformer, Input Voltage - Transformer 480V AC Delta, Output Voltage - Transformer 277V AC, 480V AC Wye, VA Rating - Transformer 225 kVA, Mounting - Transformer Floor, Outdoor Rated - Transformer No, Voltage Function - Transformer Step Down, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 150 Degrees C, Enclosure Rating NEMA 1 (Convertible to NEMA 3R by Adding Weather Shield), IP Rating Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 32 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.75
- Package Width: 40.07
- Package Height: 57.50
- Package Weight: 1925.00
Product info last updated on January 15, 2026 2:57am UTC
Category: Power Quality and Distribution
