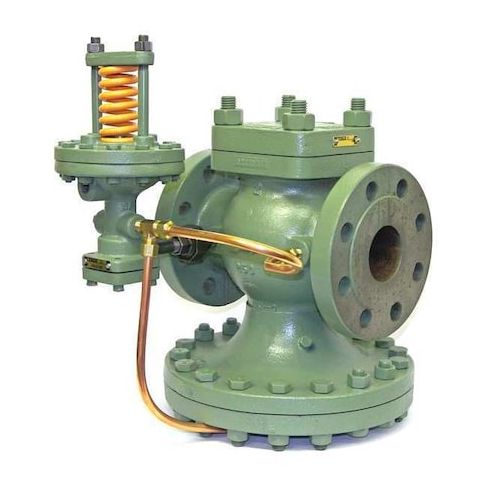

Pressure Regulator, 3 to 20 psi, 11 in. L MPN:E-C1J1A1B1AH1
Pressure Regulator, 3 to 20 psi, 11 in. L
The Spence Pressure Regulator is a reliable solution for regulating steam pressure in district heating systems. With a pressure adjustment range of 3 to 20 psi, this regulator ensures precise control and optimal system performance. Its cast iron body and EPDM/Buna-N seals provide durability and resistance to corrosion, while its ANSI/FCI 70-2 Class IV Shutoff and FCI 70-3 Class VI Shutoff certifications guarantee safe and reliable operation. Suitable for high-temperature applications up to 450°F, this regulator is ideal for use in industrial settings where precise pressure control is critical. Its compact design and easy installation make it a convenient choice for system upgrades or new installations.
Top product features:
- Adjustable pressure range from 3 to 20 psi
- Seal material made from EPDM and Buna-N for durability and resistance to corrosion
- Main valve is a single seat design for precise control and reliable operation
Top product applications:
- Steam
- District Heating Systems
- Flanged Connection
Pressure Regulator, Series ED, Body Material Cast Iron, Inlet Size 2 1/2 in, Outlet Size 2 1/2 in, Length 11 in, Height 14 1/2 in, Application Steam, District Heating Systems, Connection Type Flanged, Pressure Adjustment Range 3 to 20 psi, Gauge Port Size 1/4 in, Seal Material EPDM, Buna-N, Max. Temp. 450 Degrees F, Pipe Size 2 1/2 in, Max. Pressure 250 psi, Standards ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff, Includes Pressure Pilot, Single Seat Main Valve
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 16.00
- Package Height: 21.00
- Package Weight: 115.00
