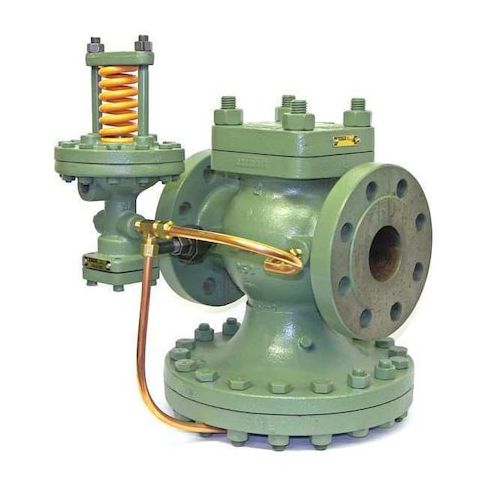

Pressure Regulator, 20 to 150 psi, 16 in H MPN:E-C1K1A1B1AN1
Pressure Regulator, 20 to 150 psi, 16 in H
The Spence Pressure Regulator is a robust and reliable solution for steam and district heating systems, capable of withstanding pressures up to 250 psi. With a pressure adjustment range of 20 to 150 psi, this regulator provides precise control and stability in high-pressure applications. Its durable cast iron body and EPDM/Buna-N seal material ensure long-lasting performance, even at temperatures up to 450°F. Suitable for a wide range of industries, this pressure regulator is ideal for use in power plants, industrial facilities, and commercial buildings, providing a safe and efficient means of regulating pressure and flow.
Top product features:
- Adjusts pressure to a set range of 20 to 150 psi
- Has a single seat main valve with a pressure pilot
- Is constructed with a cast iron body and uses EPDM and Buna-N seal materials
Top product applications:
- Steam
- District Heating Systems
- Industrial Process Control
Pressure Regulator, Series ED, Body Material Cast Iron, Inlet Size 3 in, Outlet Size 3 in, Length 11 3/4 in, Height 16 in, Application Steam, District Heating Systems, Connection Type Flanged, Pressure Adjustment Range 20 to 150 psi, Gauge Port Size 1/4 in, Seal Material EPDM, Buna-N, Max. Temp. 450 Degrees F, Pipe Size 3 in, Max. Pressure 250 psi, Standards ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff, Includes Pressure Pilot, Single Seat Main Valve
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 16.00
- Package Height: 21.00
- Package Weight: 135.00
Product info last updated on February 26, 2026 7:03am UTC
Category: Pipes, Valves and Fittings
