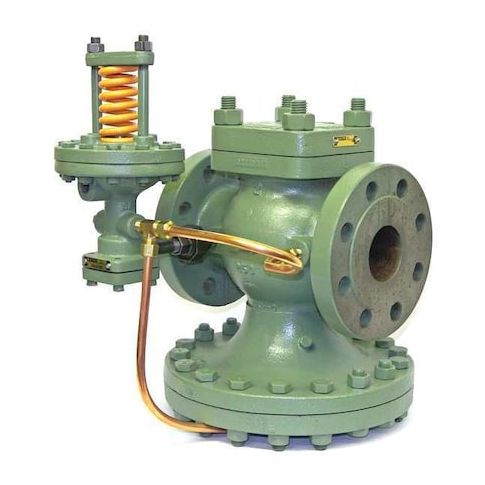

Pressure Regulator, 3 to 20 psi, 11-3/4inL MPN:E-C1K3A1B1AH1
Pressure Regulator, 3 to 20 psi, 11-3/4inL
This pressure regulator is designed for use in steam and district heating systems, providing a precise and reliable pressure adjustment range of 3 to 20 psi. The cast iron body and EPDM/Buna-N seal material ensure durability and resistance to corrosion, while the single seat main valve and pressure pilot provide a safe and efficient operation. With a maximum temperature of 450°F and a maximum pressure of 250 psi, this regulator meets ANSI/FCI 70-2 Class IV and FCI 70-3 Class VI standards. It's ideal for applications where precise pressure control is critical, such as in commercial and industrial settings.
Top product features:
- Adjustable pressure range of 3 to 20 psi
- Single-seat main valve design
- EPDM and Buna-N seal materials for high-temperature applications up to 450 Degrees F
Top product applications:
- Steam
- District Heating Systems
- Industrial Applications
Pressure Regulator, Series ED, Body Material Cast Iron, Inlet Size 3 in, Outlet Size 3 in, Length 11 3/4 in, Height 16 in, Application Steam, District Heating Systems, Connection Type Flanged, Pressure Adjustment Range 3 to 20 psi, Gauge Port Size 1/4 in, Seal Material EPDM, Buna-N, Max. Temp. 450 Degrees F, Pipe Size 3 in, Max. Pressure 250 psi, Standards ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff, Includes Pressure Pilot, Single Seat Main Valve
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 16.00
- Package Height: 21.00
- Package Weight: 135.00
Product info last updated on February 12, 2026 12:59pm UTC
Category: Pipes, Valves and Fittings
