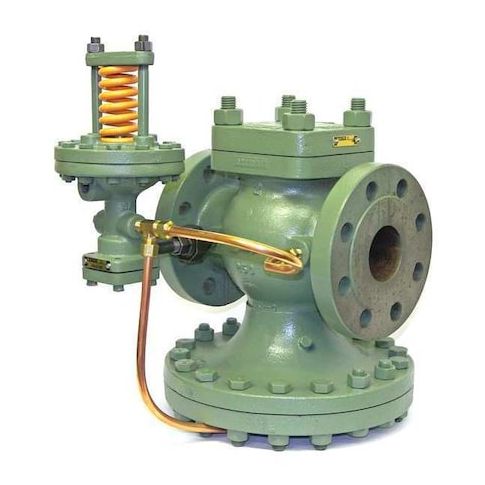

Pressure Regulator, 3 to 20 psi, 14-3/4inL MPN:E-C1L3A1B1AH1
Pressure Regulator, 3 to 20 psi, 14-3/4inL
This pressure regulator is designed for use in steam and district heating systems, providing a reliable and precise control over pressure levels. With a pressure adjustment range of 3 to 20 psi, it can handle a variety of applications, from small-scale heating systems to large industrial processes. The regulator features a cast iron body, EPDM and Buna-N seals, and a maximum temperature rating of 450°F. Its compact design makes it easy to integrate into existing systems, and the included pressure pilot ensures accurate and consistent pressure control. Ideal for use in commercial and industrial settings.
Top product features:
- Pressure adjustment range of 3 to 20 psi
- Main valve with single seat design
- Seal material made from EPDM and Buna-N for durability
Top product applications:
- Steam
- District Heating Systems
- Industrial Applications
Pressure Regulator, Series ED, Body Material Cast Iron, Inlet Size 4 in, Outlet Size 4 in, Length 14 3/4 in, Height 20 in, Application Steam, District Heating Systems, Connection Type Flanged, Pressure Adjustment Range 3 to 20 psi, Gauge Port Size 1/4 in, Seal Material EPDM, Buna-N, Max. Temp. 450 Degrees F, Pipe Size 4 in, Max. Pressure 250 psi, Standards ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff, Includes Pressure Pilot, Single Seat Main Valve
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 16.00
- Package Height: 21.00
- Package Weight: 220.00
