3-in-1 Air Compressor/Generator/Welder, 14 hp, Gasoline, 30 Gal, 5000 Watt (AGW-SM14-30G) MPN:AGW-SM14-30G

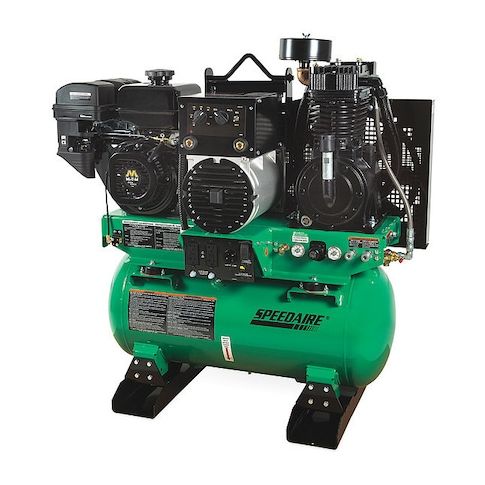

• The SPEEDAIRE AGW-SM14-30G Stationary Air Compressor/Generator/Welder is a gas-powered, three-function unit that combines air compression, power generation, and welding in a single system. It is powered by a 14 hp Mi-T-M Subaru gasoline engine with both electric and recoil start options. The two-stage, splash-lubricated piston pump delivers 17 cfm at 90 psi and operates up to 175 psi maximum pressure. The onboard generator produces 4,500 rated watts (5,000 maximum), while the welder provides an adjustable output range from 50 to 170 amps. The 30-gallon horizontal ASME tank offers consistent air supply for extended operation.

  Key Features:

  • - Function: Integrated air compressor, generator, and welder system
  • - Engine: 14 hp Subaru gasoline engine with electric/recoil start
  • - Air Delivery: 17 cfm at 90 psi
  • 15.7 cfm at 175 psi maximum
  • - Air Tank Capacity: 30-gallon horizontal ASME tank
  • - Pump Type: Two-stage, reciprocating, splash-lubricated piston
  • - Generator Output: 4,500 rated watts / 5,000 maximum watts
  • - Welder Output Range: 50–170 amps
  • - Operating Pressure: 175 psi maximum
  • - Fuel Capacity: 1.7 gal
  • run time up to 3.3 hr at half load
  • - Sound Level: 80.8 dB
  • - Includes: 5 outlets and NPT connections (1/4 in)
  • - Dimensions: 46 in L × 22 in W × 47 in H
  • weight 650 lb
  • - Safety Features: Low-oil shutdown and steel guard protection
  • - Mobility: Stationary configuration
