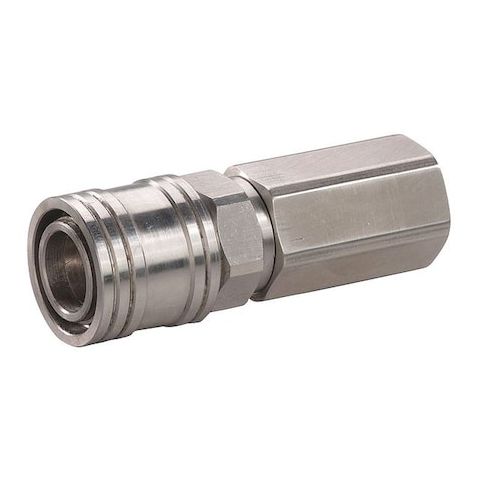

Coupler Body, (F)NPT, 1/4, 304 SS MPN:30E571

• The SPEEDAIRE - 30E571 is a quick connect hose coupling that enables push-to-connect locking for connection and disconnection without tools (per the push-to-connect locking mechanism description). It provides a seal at the connection as specified by the included Nitrile (Buna‑N) seal material. It provides a seal at the connection as specified by the included Nitrile (Buna‑N) seal material. Constructed from 304 stainless steel with a plain finish, this coupling includes an integrated poppet valve for controlling airflow and is compatible with Hi Flow plugs. It employs a push-to-connect locking mechanism and features a female hose fitting connection.

  Key Features:


  • - Material: 304 Stainless Steel with a plain surface finish.
  • - Size: 1/4 in coupling size and body size
  • hose fitting size is 3/8 in.
  • - Connection Type: NPT thread with 3/8"-18 specification, female hose fitting.
  • - Coupling Component: Socket type with push-to-connect locking.
  • - Valve: Included poppet valve for flow control.
  • - Rated maximum flow rate: 1,415.84 LPM and rated maximum working pressure: 400 psi at 70°F.
  • - Seal Material: Nitrile (Buna-N) for pressure and sealing performance when connected using the specified seal material (Nitrile (Buna‑N)).
  • - Rated operating temperature range: -40°F to 200°F.
  • - Interchange Compatibility: Global Style High Flow interchange standard.
