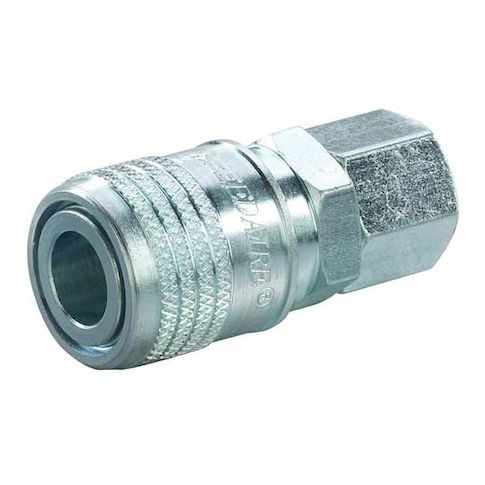

Coupler Body, (F)NPT, 1/4, Steel MPN:30E714

The SPEEDAIRE - 30E714 is a hose coupling designed for connection and disconnection without tools at the end of a hose or air supply. It features a sleeve locking mechanism and includes a poppet valve to regulate flow when engaged or disengaged. The coupling is compatible with industrial interchange plugs and is suitable for pneumatic and fluid line applications within the specified working pressure and temperature ranges, rated for use up to a maximum working pressure of 300 psi at 70°F and a flow rate up to 991.09 liters per minute. It is rated for operation within a temperature range of -40°F to 150°F.

Key Features:

• - Material: Steel construction with zinc-plated finish.
• - Connection Type: Female NPT with a thread size of 1/2" -14.
• - Body and Coupling Size: 1/4 inch nominal diameter.
• - Seal Material: Nitrile for providing sealing when installed in accordance with the specified connection and operating conditions.
• - Coupling Component: Socket type.
• - Valve Type: Poppet valve included to regulate flow when engaged or disengaged.
• - Barbed End: No, indicating a smooth connection without barbed hose tails.
