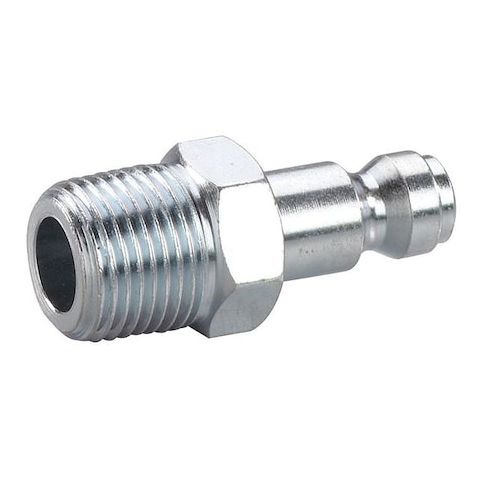

Coupler Plug, (M)NPT, 1/4, Steel MPN:30E741

The SPEEDAIRE - 30E741 is a push/pull locking hose coupling with quick-connection style fittings designed to support push/pull locking for connection and disconnection without a separate tool. It is used on the end of a hose or tool inlet and is intended to form a sealed connection when mated with compatible couplers and installed in accordance with the applicable specifications. The coupling follows the Tru-Flate-Automotive interchange standard, making it compatible with automotive interchange couplers.

Key Features:

• - Material: Steel construction with a zinc-plated finish for surface protection.
• - Body and Coupling Size: 1/4 in nominal diameter for both air coupling and hose fitting size.
• - Hose Fitting Gender: Male.
• - Connection Type: 1/4" -18 NPT thread size.
• - Seal Material: Buna-N providing sealing capability within the fitting.
• - Max. Flow Rate: 1,132.67 liters per minute.
• - Max. Working Pressure: 300 psi at 70°F.
• - Operating Temperature Range: -40°F to 150°F.
• - Includes Valve: No valve included in this fitting.
