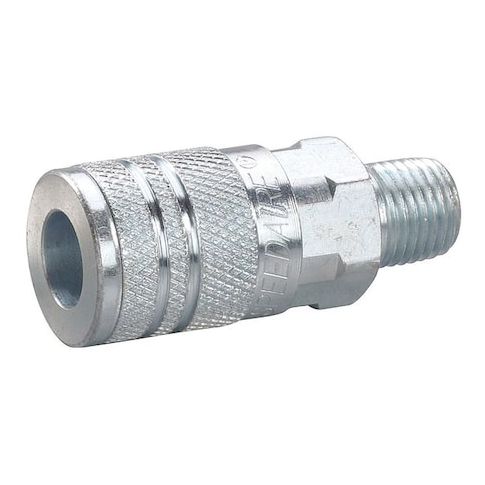

Coupler Body, (M)NPT, 1/4, Steel MPN:30E693

• The SPEEDAIRE - 30E693 is a quick connect hose coupling configured for use on the end of a hose or air supply line. It supports connection and disconnection without tools using the sleeve locking mechanism and is intended to form a sealed connection for pneumatic and fluid transfer applications. This coupling is rated for use in pneumatic and fluid transfer applications and is compatible with industrial interchange plugs that conform to the Industrial Interchange type standard. It includes an integrated poppet valve for air or fluid flow control when connected or disconnected. It is constructed from steel with a zinc-plated finish for corrosion resistance and is configured for a 1/4 in coupling size and 3/8 in hose fitting size.

  Key Features:


  • - Application: End of Hose or Air Supply use.
  • - Body size: 1/4 in
  • Coupling size: 1/4 in
  • Hose fitting size: 3/8 in.
  • - Connection type: NPT with 3/8"-18 thread size and male hose fitting gender.
  • - Material: Steel with a zinc-plated finish for corrosion resistance.
  • - Seal material: Nitrile, rated for operation within -40°F to 150°F.
  • - Maximum flow rate: 991.09 L/min
  • maximum working pressure: 300 psi at 70°F
  • - Coupling component: Socket with sleeve-type locking mechanism.
  • - Includes a poppet valve to regulate flow.
  • - Compatible with industrial interchange plugs that conform to the Industrial Interchange type standard.
