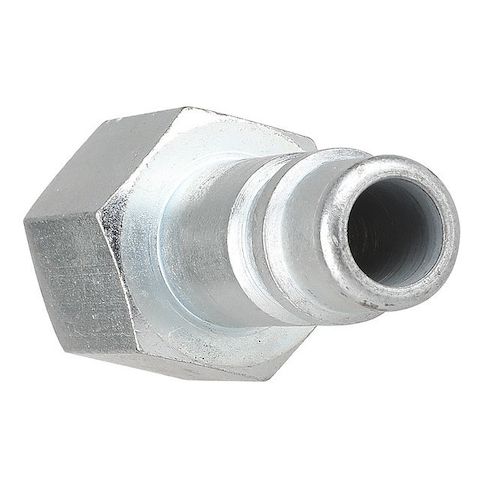

Coupler Plug, (F)NPT, 1/2, Steel MPN:30E663
Free Shipping
In Stock
The SPEEDAIRE - 30E663 Quick Connect Plug is a versatile and reliable solution for tool-assisted or tool-free connection and disconnection of hoses or equipment in industrial applications. Constructed from steel with a zinc-plated finish, this female hose fitting features a 3/4 in nominal hose fitting size and a 1/2 in coupling size, making it suitable for use with air, water, or fluid lines in pneumatic, hydraulic, and general-purpose applications. With a maximum working pressure rating of 300 psi and a rated temperature range of -40°F to 150°F, this plug is ideal for use in a variety of industries, including manufacturing, construction, and agriculture.
Top product features:
- Material: Steel body with zinc-plated finish for durability and resistance to corrosion.
- Hose Fitting Gender: Female, suitable for connecting to male counterparts for easy tool-assisted or tool-free connection and disconnection of hoses or equipment.
- Buna-N seal material for reliable and leak-free connections in a wide range of temperatures and pressures.
Top product applications:
- Pneumatic applications
- Hydraulic applications
- General-purpose applications
The SPEEDAIRE - 30E663 is intended for tool-assisted or tool-free connection and disconnection of hoses or equipment (as applicable to the compatible couplers) at the end of a hose or tool inlet. It uses an industrial interchange standard and is compatible with industrial interchange couplers. Constructed from steel with a zinc-plated finish, this female hose fitting has a nominal 3/4 in hose fitting size and a 1/2 in coupling size. The coupling is a plug type made to connect with NPT threaded connections and is intended for use with air, water, or fluid lines in pneumatic, hydraulic, and general-purpose applications.
Key Features:
- - Material: Steel body with zinc-plated finish.
- - Hose Fitting Gender: Female, suitable for connecting to male counterparts.
- - Hose Fitting Size: Nominal 3/4 in connection size.
- - Coupling Size and Body Size: 1/2 in, indicating the coupling port diameter.
- - Connection Type: NPT thread size of 3/4"-14, compatible with matching threaded fittings.
- - Seal Material: Buna-N seal material (see rated pressure/temperature requirements for installation compatibility).
- - Maximum Flow Rate: maximum rated flow rate: 1,982.18 liters per minute (requires system configuration consistent with the rating).
- - Maximum Working Pressure: maximum working pressure rating: 300 psi at 70°F.
- - Temperature Range: rated temperature range: -40°F to 150°F.
- - Standards: Conforms to ISO 6150 and MIL-C-4109F specifications.
- - Does not include integrated valves.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.30
