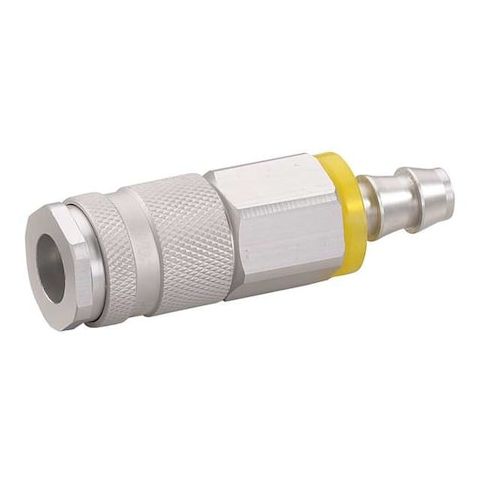

Coupler Body, Push On, 1/4, Aluminum MPN:30E629

The SPEEDAIRE - 30E629 is a quick connect hose coupling configured for push-on hose connections, is configured for push-to-connect engagement without tools, enabling rapid joining and separation of hoses or equipment. It features a push-to-connect locking mechanism with an poppet valve is equipped with an integrated poppet valve for controlling fluid or air flow, intended to form a sealed connection when installed and used within the rated specifications. The aluminum body with an anodized finish, and the fitting is rated for use with 1/4 in inner diameter hose, is compatible with pneumatic and fluid transfer applications within the specified temperature and pressure ranges.

Key Features:

• - Material: Aluminum body with anodized finish
• - Connection: 1/4 in hose barb (male fitting)
• - Coupling component: Socket
• - Coupling locking type: Push-to-connect
• - Includes integrated poppet valve
• - Seal material: Nitrile
• - Maximum flow rate: 1,415.84 liters per minute
• - Maximum working pressure: 250 psi at 70°F
• - Temperature range: -40°F to 150°F
• - Interchange type: Global Style High Flow
