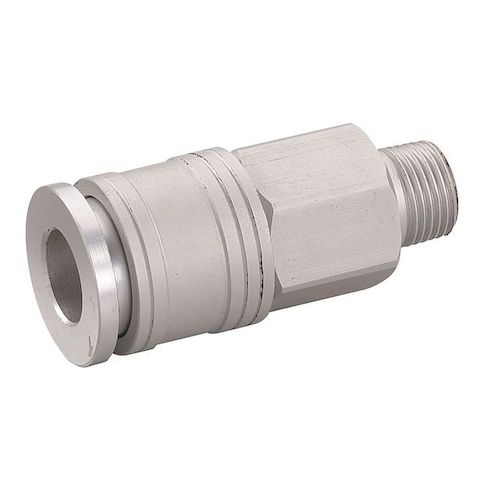

Coupler Body, (M)NPT, 3/8, Aluminum MPN:30E611

The SPEEDAIRE - 30E611 is a quick connect hose coupling designed for tool-free connection and disconnection at the end of a hose or air supply. It features a push-to-connect locking mechanism to form a sealed connection when properly installed and used within the specified pressure and temperature ranges. Constructed from aluminum with an anodized finish, this coupling is compatible with industrial interchange couplers and intended for use in pneumatic and general-purpose hose coupling applications.

Key Features:

• - Body and coupling size: 3/8 in, with a 3/8"-18 NPT male thread size.
• - Hose fitting gender: Male.
• - Connection type: NPT threads.
• - Includes a poppet valve with integrated shut-off functionality.
• - Sealing element made of nitrile material.
• - Maximum rated flow rate: 1,274.26 liters per minute (rating under specified conditions).
• - Maximum working pressure rating: 250 psi at 70°F, when used within the specified operating conditions.
• - Rated operating temperature range: -40°F to 150°F.
• - Coupling component: Socket.
• - Finish: Anodized aluminum.
• - Interchange standard: Industrial.
• - Uses a push-to-connect locking mechanism.
