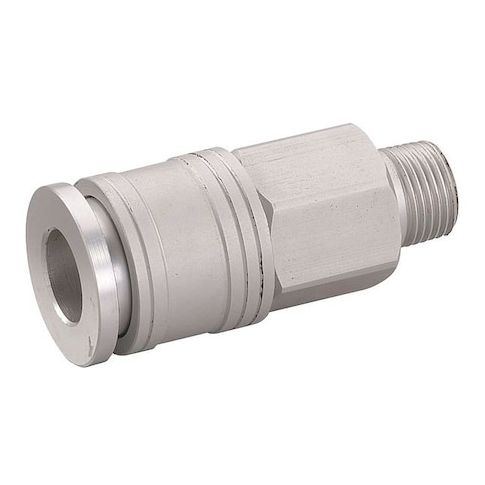

Coupler Body, (M)NPT, 3/8, Aluminum MPN:30E610

• The SPEEDAIRE - 30E610 is a quick connect hose coupling designed for use on the end of a hose or air supply. It allows for rapid, tool-free connection and disconnection of hoses or equipment, featuring a push-to-connect locking mechanism. Constructed from aluminum with an anodized finish, this coupling is for use with industrial interchange couplers and includes an integrated poppet valve for controlling air or fluid flow. It is rated for operation at -40°F to 150°F and is rated for a maximum working pressure of 250 psi at 70°F, with a maximum flow rate of 42 CFM.

  Key Features:


  • - Coupling Size: 3/8 in
  • Hose Fitting Size: 1/4 in
  • - Hose Fitting Gender: Male
  • Connection Type: NPT with 1/4"-18 thread size
  • - Coupling Component: Socket with push-to-connect locking type
  • - Seal Material: Nitrile
  • - Includes Valve: Yes, valve type is poppet
  • - Body Material: Aluminum with anodized finish
  • - Application: End of Hose or Air Supply
  • - For Use With: Industrial Interchange Coupler
  • - Operating Temperature Range: -40°F to 150°F
  • - Max. Working Pressure: 250 psi @ 70°F
  • Max. Flow Rate: 42 CFM
  • - Color: Silver
