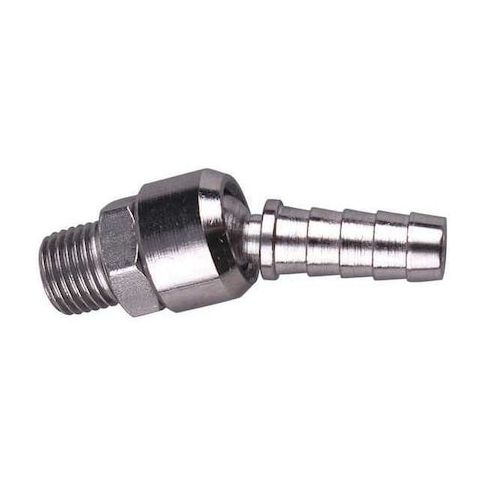

Swivel Connector, 1/4 (M)NPT x 3/8 Barb MPN:30E603

• The SPEEDAIRE - 30E603 is a swivel connector designed as a quick-connect fitting that allows the hose or attached tool to rotate freely relative to the fixed coupling. Designed to provide a 360-degree swivel joint that reduces relative rotation between the hose/tool and the fixed coupling. Includes an NBR sealing element

• rated for a maximum working pressure of 150 psi at 70°F. Compatible with pneumatic tools and pneumatic tubing lines that use an 1/4 in male NPT inlet and a 3/8 in hose barb outlet.

  Key Features:


  • - Connection type: (M)NPT x Hose Barb with 1/4 in NPT inlet and 3/8 in hose barb outlet size.
  • - Material: Steel construction with chrome-plated finish for surface treatment.
  • - Seal material: NBR (Nitrile) used for sealing elements.
  • - Maximum working pressure: 150 psi at 70°F.
  • - Operating temperature range: -20°F to 150°F.
  • - Swivel angle of 360 degrees with one pivot point and a 25-degree pivot angle, utilizing a ball-joint swivel type.
  • - Overall length of 2.39 in.
  • - Does not include pre-applied thread sealant.
