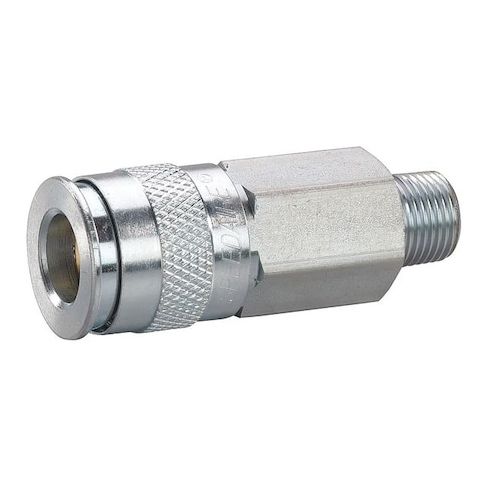

Coupler Body, (M)NPT, 1/4, Brass/Steel MPN:30E720

The SPEEDAIRE - 30E720 is a quick connect hose coupling intended for use as an end coupling on compatible hoses and air supply lines. It provides a push-to-connect mechanism for connection and disconnection without requiring tools, and is rated to form a sealed connection for air or fluid transfer when installed with compatible fittings and under the specified operating conditions. The coupling includes an integrated poppet valve to control flow during connection and disconnection. Compatible with ARO, industrial, or automotive plugs, this coupling is suitable for pneumatic applications and other uses consistent with its specified maximum working pressure (250 psi at 70°F) and temperature range (-40°F to 150°F).

Key Features:

• - Material: Steel construction with a zinc-plated finish for surface protection.
• - Connection Type: Male hose fitting with 3/8" size and 3/8"-18 thread size (NPT standard).
• - Body and Coupling Size: 1/4" quick connect air coupling and coupling size.
• - Seal Material: Nitrile for pressure and fluid sealing.
• - Max Flow Rate: 991.09 lpm (based on manufacturer test conditions).
• - Maximum Working Pressure: Rated for 250 psi at 70°F.
• - Temperature Range: Operates between -40°F and 150°F.
• - Coupling Component: Socket type with a push-to-connect locking mechanism.
• - Interchange Type: Interchange type: universal (compatible with ARO, industrial, or automotive plugs).
• - Includes Valve: Yes, with a poppet valve type for flow regulation.
