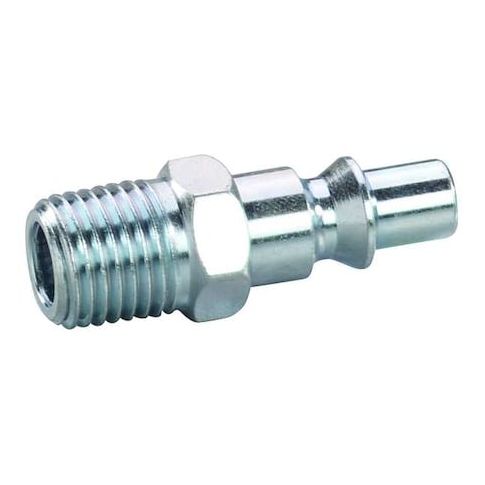

Coupler Plug, (M)NPT, 1/4, Steel MPN:30E716
Free Shipping
In Stock
The SPEEDAIRE 30E716 Coupler Plug is a quick and reliable solution for connecting and disconnecting hoses and equipment. Designed for rapid tool-free connections, this steel coupling features a push/pull locking mechanism and is compatible with ARO interchange couplers. Ideal for use in air and fluid systems, this coupler provides a sealed connection and is suitable for a wide range of applications, including pneumatic tools, hydraulic equipment, and fluid transfer systems. With a maximum working pressure of 300 psi and operating temperature range of -40°F to 150°F, this coupler is a reliable choice for demanding industrial environments.
Top product features:
- The SPEEDAIRE Coupler Plug provides a push/pull locking mechanism for securing the connection to compatible couplers within the specified pressure and temperature ratings.
- The coupling includes a sealed connection when used with compatible mating components per specified pressure/temperature ratings.
- The steel coupling is compatible with ARO interchange couplers and is intended for installation at the end of a hose or tool inlet using the specified thread connection.
Top product applications:
- Air Systems
- Fluid Systems
- Tool Inlets
The SPEEDAIRE - 30E716 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment using an ARO interchange standard. It includes a push/pull locking mechanism for securing the connection to compatible couplers within the specified pressure and temperature ratings, provides a sealed connection when used with compatible mating components per specified pressure/temperature ratings. This steel coupling is compatible with ARO interchange couplers and is intended for installation at the end of a hose or tool inlet using the specified thread connection. It is compatible for use with air and fluid systems within the specified pressure and temperature ranges.
Key Features:
- - Coupling component: Plug with male hose fitting gender.
- - Connection type: 1/8" -27 NPT threads.
- - Body and coupling size: 1/4 in nominal diameter.
- - Hose fitting size: 1/8 in.
- - Material: Steel construction with zinc-plated finish.
- - Seal material: Buna-N for fluid or pressure sealing.
- - Maximum flow rate: rated maximum flow rate: 1,132.67 L/min (based on compatible line sizes and conditions).
- - Maximum working pressure at 70°F: maximum working pressure at 70°F: 300 psi (when used within specified temperature range and with compatible components).
- - Operating temperature range: -40°F to 150°F.
- - Color: Silver.
- - Does not include an integrated valve.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.60
- Package Height: 0.60
- Package Weight: 0.01
