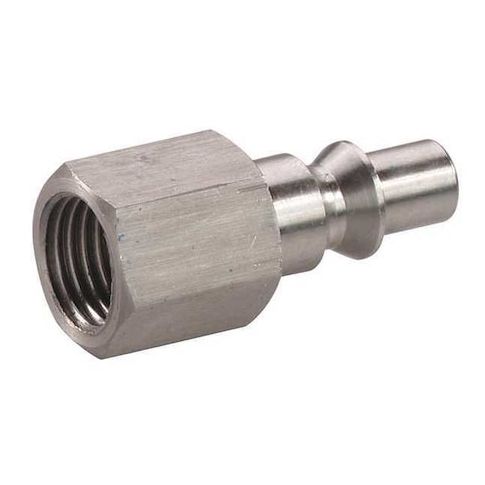

Coupler Plug, (F)NPT, 1/4, 304 SS MPN:30E554
Free Shipping
In Stock
The Speedaire 30E554 Coupler Plug is a reliable and efficient quick connect hose coupling designed for push/pull applications in air or fluid service. Made from durable 304 stainless steel, this coupler provides a secure seal using HNBR sealing elements, ensuring a leak-free connection. With a maximum working pressure of 300 psi and operating temperature range of -40°F to 200°F, this coupler is suitable for a variety of applications, including pneumatic tools, air compressors, and fluid transfer systems. Its compatibility with ARO interchange couplers makes it a versatile solution for industries that require quick and easy connections.
Top product features:
- Push/pull locking mechanism for quick connect and disconnect
- Provides a seal using HNBR sealing elements
- Operates within a specified pressure and temperature range for air or fluid service
Top product applications:
- Air Compressor Hose Coupling
- Industrial Hose Coupling for Air or Fluid Service
- Tool Inlet Quick Connect and Disconnect Fitting
The SPEEDAIRE - 30E554 is a quick connect hose coupling designed for push/pull quick connect and disconnect at the end of a hose or tool inlet. It provides a seal using HNBR sealing elements and is intended for quick connect/disconnect using a push/pull locking mechanism. This fitting operates using a push/pull locking mechanism and is compatible with air or fluid service when used within the specified pressure and temperature ratings. It is compatible with ARO interchange couplers when installed and used as specified.
Key Features:
- - Coupling Component: Plug (male half of the quick-connect system)
- - Connection Type: Female NPT with a 3/8"-18 thread size
- - Hose Fitting Gender: Female
- - Hose Fitting Size: 3/8 in
- - Body and Coupling Size: 1/4 in nominal diameter
- - Material: 304 stainless steel construction
- - Seal Material: HNBR for sealing elements
- - Finish: Plain (no plating or coating)
- - Maximum Flow Rate: 1,132.67 liters per minute
- - Maximum Working Pressure: 300 psi at 70°F
- - Operating Temperature Range: -40°F to 200°F
- - Barbed: No
- - For Use With: ARO interchange couplers
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.01
