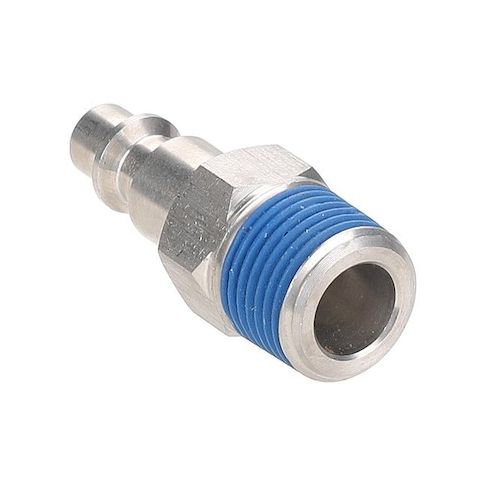

Coupler Plug, (M)NPT, 1/4, 304 SS MPN:30E549

• The SPEEDAIRE - 30E549 is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment using a push/pull locking mechanism. is used as a hose coupling component for connection to a hose end and compatible tool or inlet ports. The coupling is constructed from 304 stainless steel and is specified for use with a Buna-N seal to form a connection as described in the Maximum Working Pressure and Temperature Range specifications. is intended for use in pneumatic, hydraulic, and fluid transfer applications when used within the specified Maximum Working Pressure and Temperature Range. supports connection/disconnection using a push/pull locking mechanism for the stated coupling type. is compatible with industrial interchange couplers of the specified interchange type.


  Material: 304 Stainless Steel body with a plain finish.

  Connection Type: (M)NPT thread, 3/8"-18 thread size.

  Hose Fitting Gender: Male.

  Hose Fitting Size: 3/8 in

• Coupling Size: 1/4 in
• Body Size: 1/4 in.

  Seal Material: Buna-N for leak resistance.

  Maximum Rated Flow Rate (per product specifications): 1,132.67 liters per minute.

  Maximum Working Pressure Rating: 300 psi at 70°F (use within this rating).

  Temperature Range: -40°F to 150°F.

  Interchange Type: Industrial standard compatible.

  Includes Valve: No

• Barbed: No (smooth connection).

  Meets Standards ISO 6150 and MIL-C-4109F.
