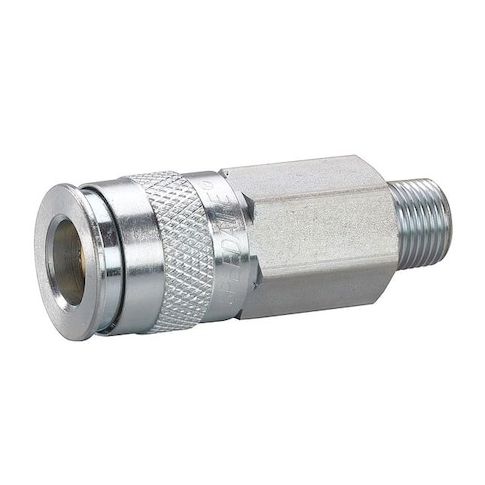

Coupler Body, (M)NPT, 1/2, Brass/Steel MPN:30E534

The SPEEDAIRE - 30E534 is a hose coupling designed for use on the end of hoses or air supply lines. It provides a connection that is rated for use with pneumatic and general fluid transfer applications (see maximum working pressure and temperature ratings). This coupling provides a connection that uses a nitrile seal and is rated for maximum working pressure at 70°F, compatible with industrial interchange plugs (for use with 1/2 in nominal diameter per the specified interchange plug standard).

Key Features:

• - Zinc plated steel body (surface finish).
• - Coupling size and body size: 1/2 in nominal diameter.
• - Connection type: Male NPT thread, size 1/2"-14.
• - Includes an integrated poppet valve type.
• - Seal material: Nitrile, suitable for a temperature range of -40°F to 150°F.
• - Maximum working pressure: 250 psi at 70°F.
• - Maximum flow rate: 1,840.6 L/min.
• - Coupling component: Socket with push-to-connect locking mechanism.
• - Application compatibility: Suitable for use with industrial interchange plugs on air supply or hose ends.
