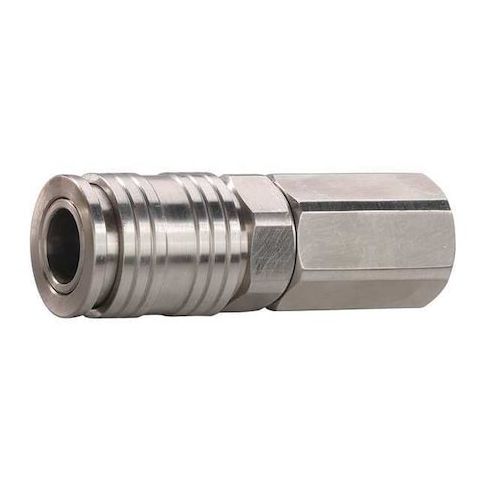

Coupler Body, (F)NPT, 1/4, 304 SS MPN:30E537
Free Shipping
In Stock
Elevate your air supply system with the Speedaire 30E537 Quick Connect Hose Coupling Socket. Designed for universal use, this 304 stainless steel fitting provides a reliable, sealed connection for hoses and air supplies. Its push-to-connect mechanism simplifies installation and disconnection, while the integrated poppet valve ensures smooth flow rates and pressure control. With a maximum flow rate of 991.09 lpm and a working pressure of 400 psi, this coupling is suitable for a wide range of applications, including industrial, automotive, and ARO systems. Its compact design and silver finish make it a versatile and durable addition to any air supply system.
Top product features:
- Push-to-connect mechanism for easy connection and disconnection
- Made from 304 stainless steel for durability and resistance to corrosion
- Integrated poppet valve for a sealed connection and controlled flow rate
Top product applications:
- Air supply lines
- Automotive applications
- Industrial pneumatic systems
The SPEEDAIRE - 30E537 is a quick connect hose coupling designed for use on the end of a hose or air supply. It includes a push-to-connect mechanism for connection and disconnection. Made from 304 stainless steel with a plain finish, this fitting is intended to form a sealed connection when properly installed and is compatible with specified ARO/industrial/automotive plug types when used within their rated specifications. The coupling includes an integrated poppet valve.
Key Features:
- - Body and coupling size: 1/4 in
- - Connection type: 1/4" -18 NPT female thread
- - Hose fitting gender: Female
- - Seal material: Nitrile
- - Max. flow rate: 991.09 lpm
- - Max. working pressure: 400 psi @ 70°F
- - Operating temperature range: -40°F to 200°F
- - Coupling component: Socket
- - Valve type: Poppet
- - Interchange type: Universal
- - Color: Silver
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.35
