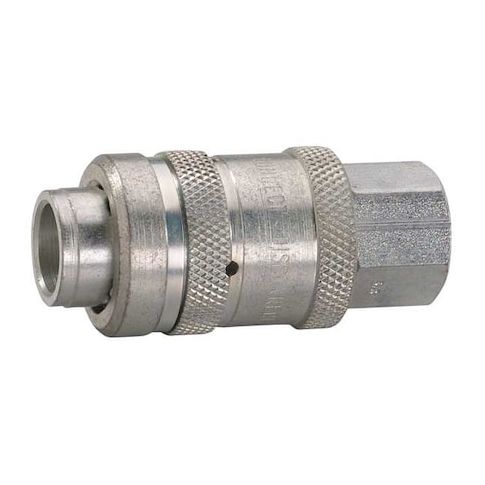

Coupler Body, (F)NPT, 3/8, Steel MPN:30E530

• The SPEEDAIRE - 30E530 is a designed for connection and disconnection without additional tools (tool-free connection per stated configuration) at the end of a hose or air supply line. It provides a sealed connection per the incorporated seal material (Nitrile) (omit “leak-resistant”) compatible with industrial interchange plugs and supports a flow rate up to 1,274.26 liters per minute. Constructed from steel with a zinc-plated finish, this coupling is suitable for specified fluid/air line applications consistent with the stated material and ratings (steel with zinc-plated finish

• max flow rate 1,274.26 lpm
• max working pressure 232 psi at 70°F
• operating temperature -40°F to 150°F). The integrated poppet valve and sleeve locking mechanism facilitates controlled flow through the integrated poppet valve and sleeve locking mechanism without additional tools.

  Key Features:


  • - Application: Used on end of hose or air supply
  • - Body/Coupling size: 3/8 in with 3/8"-18 thread size
  • - Hose fitting gender: Female
  • - Material: Steel with zinc-plated finish
  • - Connection type: NPT thread standard
  • - Includes valve: Yes, poppet valve type
  • - Coupling component: Socket
  • - Coupling locking type: Sleeve
  • - Seal material: Nitrile
  • - Maximum flow rate: 1,274.26 lpm
  • - Maximum working pressure at 70°F: 232 psi
  • - Operating temperature range: -40°F to 150°F
  • - Compatible with: Industrial interchange plug
