Coupler Body, (F)NPT, 1/4, Brass/Steel MPN:30E529
Free Shipping
In Stock

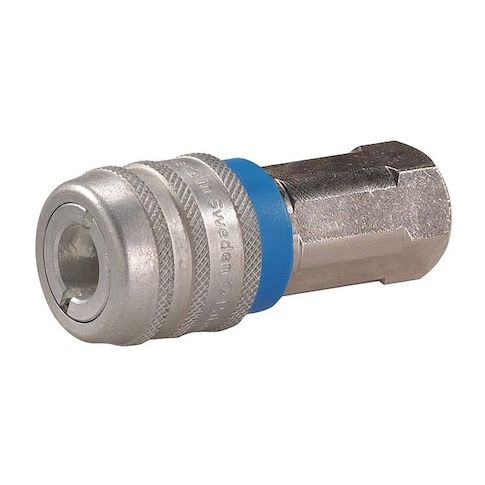

The Speedaire 30E529 Quick Connect Hose Coupling Socket is a reliable and efficient solution for industrial applications. Designed for push-to-connect assembly and disassembly, this female coupling features a push-to-connect locking mechanism and integrated poppet valve to control fluid or air flow. Constructed of zinc-plated steel with nitrile seals, it provides a secure and leak-free connection. Suitable for use with industrial interchange plugs, this coupling is ideal for applications such as pneumatic systems, air supplies, and hose ends. Its compact design and high flow rate make it a valuable asset for industries requiring efficient and reliable connections.
Top product features:
- Quick connect assembly and disassembly without tools at the end of a hose or air supply.
- Push-to-connect locking mechanism for secure connection.
- Integrated poppet valve for controlling fluid or air flow.
Top product applications:
- Forming a sealed connection when properly coupled on ends of hoses or air supplies
- Used with industrial interchange plugs per the specified coupling interface
- Applied on ends of hoses or air supplies
The SPEEDAIRE - 30E529 is a quick connect hose coupling is configured for push-to-connect assembly and disassembly without tools at the end of a hose or air supply. it has a push-to-connect locking mechanism and includes a poppet valve to control fluid or air flow. is compatible with industrial interchange plugs (per the specified coupling interface), this female coupling supports a 1/4 inch hose fitting size and connection thread size of 1/4" -18 NPT, is intended to form a sealed connection when properly coupled. is constructed of zinc-plated steel and utilizes nitrile seals, has an operating temperature rating of -40°F to 150°F.
Key Features:
- - Quick connect socket component with 1/4 in coupling size and specified body size.
- - it has a push-to-connect locking mechanism for push-to-connect assembly and disassembly.
- - Includes a poppet valve integrated in the coupling for controlling flow through the integrated poppet valve.
- - has a maximum flow rate of 991.09 L/min and a maximum working pressure of 175 psi at 70°F.
- - Constructed of zinc-plated steel with nitrile sealing elements.
- - Designed for use with industrial interchange plugs (per the specified coupling interface) and applied on ends of hoses or air supplies.
- - Hose fitting is female with NPT connection type.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.30
